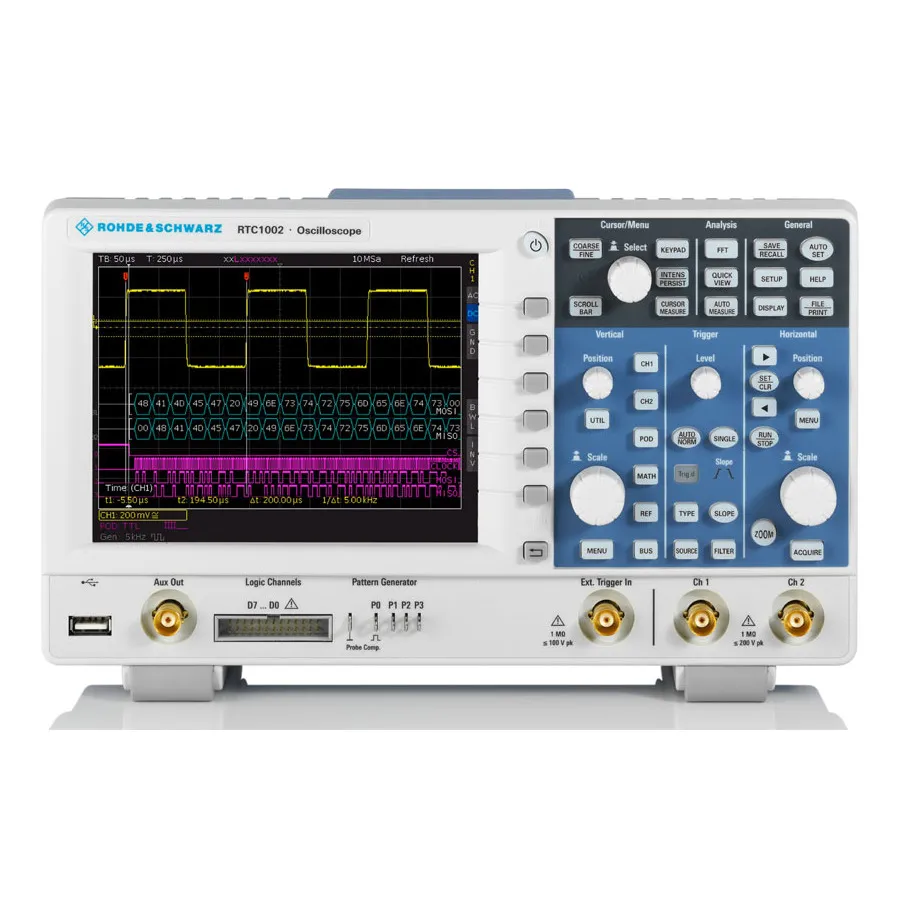

Rohde & Schwarz RTC1002 Digital Oscilloscope
Request a quote
Rohde & Schwarz RTC1002 — 50 MHz digital oscilloscope with 2 channels, 2.5 GS/s sampling, logic analyzer, and protocol analysis for engineering and education.
Product details
| Model | RTC1002 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTC1002 is a versatile digital oscilloscope from the RTC1000 series designed for embedded developers, service technicians, and educators. This eight-in-one instrument combines oscilloscope, logic analyzer, protocol analyzer, frequency analyzer, pattern generator, function generator, digital voltmeter, and component tester in a single compact unit.
Key Features
- 50 MHz base bandwidth (upgradeable to 70, 100, 200, or 300 MHz)
- 2 analog channels, expandable with 8 digital channels via MSO option
- Maximum sampling rate of 2.5 GS/s interleaved, 1.25 GS/s per channel
- 2 Msample memory depth for extended waveform capture
- Low-noise A/D converters for accurate measurements
- 6.5-inch VGA color display (640 x 480 px)
- Wide selection of automatic measurement functions
- QuickView feature for instant key results
- Mask test capability for signal validation
- Silent, high-performance design
- 3-year warranty included
Applications
- Embedded systems design and debugging
- Field service and troubleshooting
- Educational and laboratory use
- Signal analysis and verification
- Hardware prototyping and testing
Specifications
| Bandwidth | 50 MHz |
| Analog Channels | 2 |
| Digital Channels | None |
| Sampling Rate | 2 GS/s |
| Memory | 1 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 6.5 VGA Color |
| Series | RTC1000 Series |
| Alternate Product Number | 1335.7500.02 |
