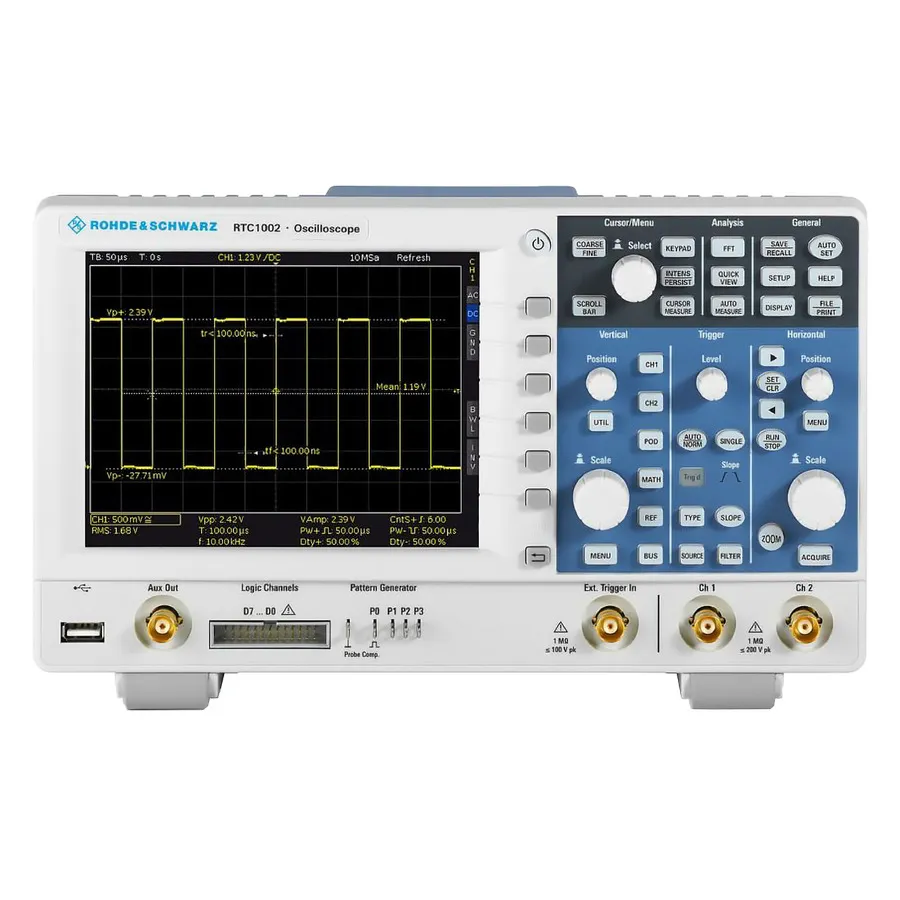

Rohde & Schwarz RTC-BNDL Digital Oscilloscope Bundle

Overview

The Rohde & Schwarz RTC-BNDL is a comprehensive oscilloscope bundle featuring the RTC1002 with 300 MHz bandwidth and essential protocol analysis options. This X-in-one instrument combines oscilloscope, logic analyzer, protocol analyzer, frequency analyzer, pattern generator, function generator, digital voltmeter, and component tester functionality in a single unit.

Key Features

• 300 MHz bandwidth (upgradeable option included)
• 2 analog channels, expandable with 8 digital channels via MSO option
• Maximum sampling rate of 2.5 GS/s interleaved, 1.25 GS/s per channel
• 2 Msample memory depth
• Low-noise A/D converters for high-quality measurements
• 6.5-inch VGA color display (640 x 480 px)
• QuickView function for instant key results
• Mask test feature for signal validation
• Waveform and pattern generator up to 50 Mbit/s
• I²C/SPI, UART/RS232, and CAN/LIN protocol triggering and decoding
• Fast boot and auto-measurement functions

Applications

• Embedded systems development and debugging
• Service and maintenance technician work
• Educational use in universities and technical schools
• Hardware prototyping and validation
• Protocol analysis and digital signal verification

Included Accessories

• RTC1002 Oscilloscope
• RTC-B223 300 MHz Bandwidth option
• RTC-PK1 Application Bundle (I²C/SPI, UART/RS232, CAN/LIN triggering and decoding)
• RTC-B6 Waveform generator
• RT-ZP03S single-ended passive probe for each channel
• Power cord and documentation
