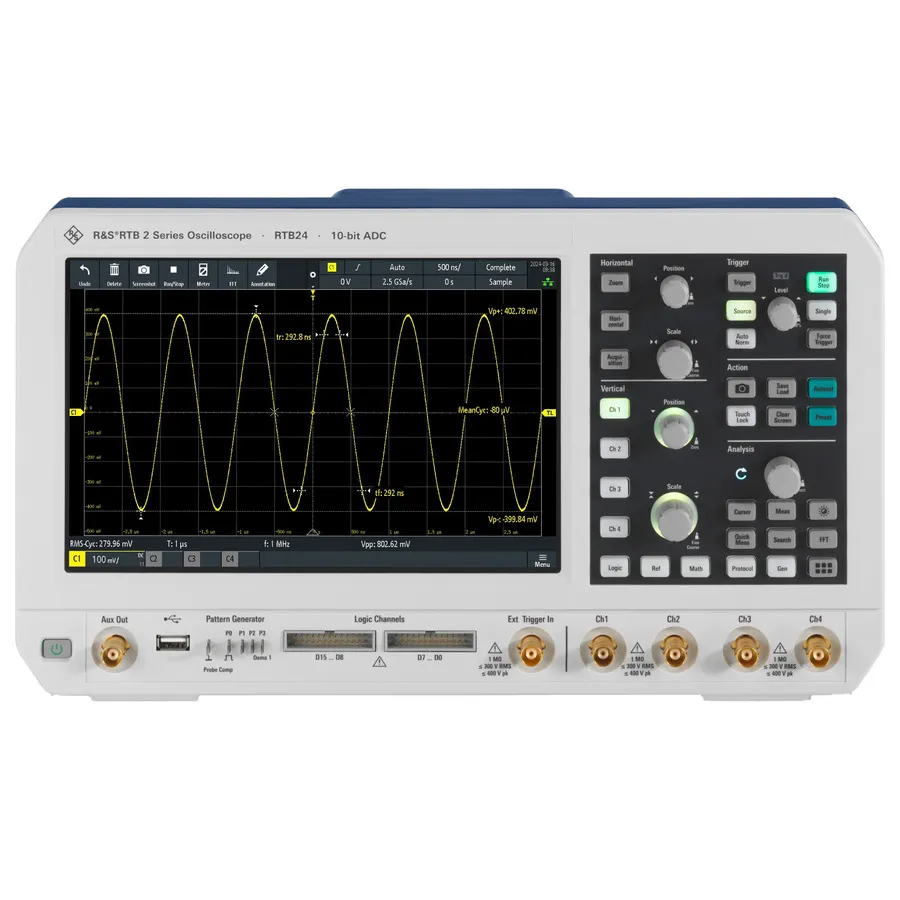

Rohde & Schwarz RTB24-300 Oscilloscope
Request a quote
Rohde & Schwarz RTB24-300 oscilloscope features 300 MHz bandwidth, 10-bit ADC, and 2.5 GS/s sample rate for precision signal analysis.
Product details
| Model | RTB24-300 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTB 2 series oscilloscopes combine the power of ten with smart operating concepts to make them a perfect general-purpose tool for students, hobbyists, technicians, and engineers. The RTB24-300 features a customized 10-bit A/D converter that delivers fourfold improvement compared to conventional 8-bit converters, resulting in sharper waveforms with more signal details.
Key Features
- 4 analog channels, expandable to 16 digital channels with R&S RTB2-B1 MSO option
- 300 MHz bandwidth with 2.5 Gsample/s maximum sample rate
- Up to 20 Msample memory depth with segmented memory functionality (160 Msample total)
- 10-bit ADC with 1280 × 800 pixel display resolution
- 10.1" capacitive touchscreen display with grid annotation and split dual window
- FFT frequency analysis with up to 128 kpoints resolution
- Integrated 3-digit digital voltmeter and 6-digit frequency counter per channel
- Mask test mode for quality assessment and signal validation
- Optional waveform and pattern generator with analog and digital stimulus output
Applications
- Analysis of switched-mode power supply transients and voltage characterization
- Protocol-based signal capture for I2C, SPI, UART, and CAN/LIN communications
- Time-correlated analog and digital signal measurement and debugging
- Educational and teaching laboratory instrument for oscilloscope training
- General-purpose electronics testing and troubleshooting
Included Accessories
- RTB24-300 Oscilloscope
- RT-ZP03 passive probes (4 units)
- Power cable
- Getting Started Manual
- Basic Safety Instructions Brochure
Specifications
| Bandwidth | 300 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 2.5 GS/s |
| Memory | 20 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTB 2 Series |
| Alternate Product Number | 1333.1005P53 |
| Includes | RTB 2 Series Digital Oscilloscope, RT-ZP03 probes x 4, Power cable, Getting Started Manual, Basic Safety Instructions Brochure |
