Rohde & Schwarz RTB22-70 Digital Oscilloscope
Request a quote
Rohde & Schwarz RTB22-70 digital oscilloscope — 2-channel, 70 MHz bandwidth, 2.5 GS/s sample rate, 10.1" touchscreen, 10-bit resolution for signal analysis.
Product details
| Model | RTB22-70 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview

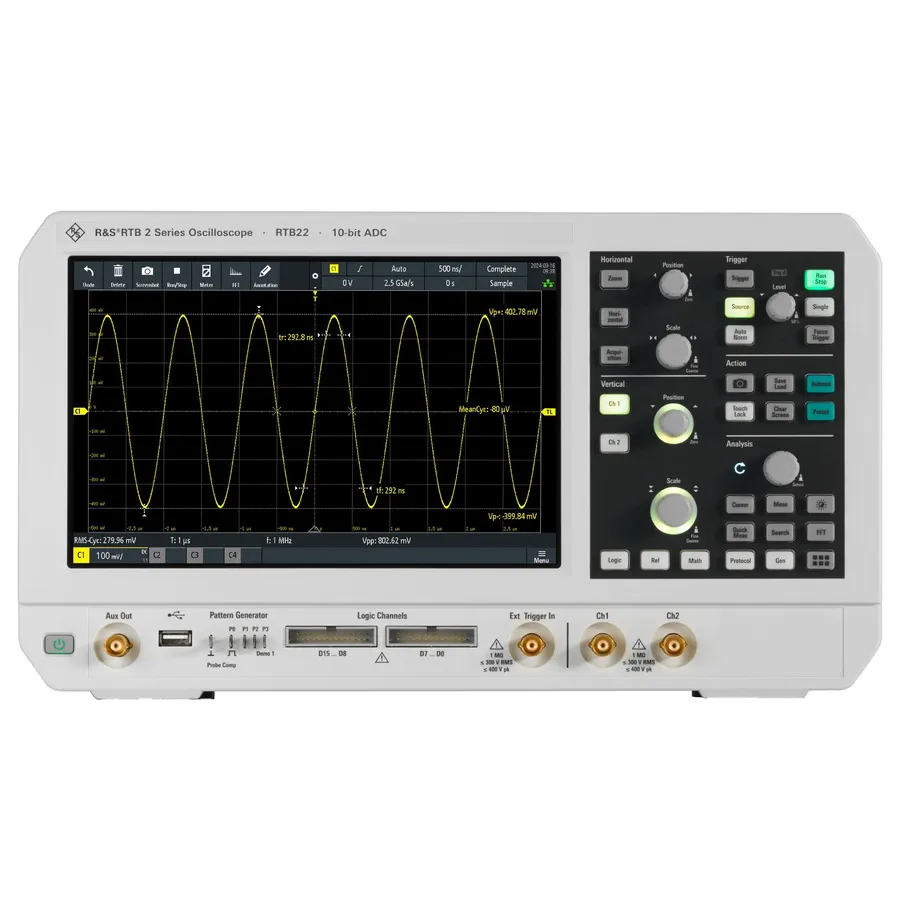

The Rohde & Schwarz RTB22-70 is a 2-channel digital oscilloscope part of the RTB 2 series, designed as a general-purpose instrument for students, technicians, and engineers. It combines high performance with user-friendly operation, featuring a 10.1-inch capacitive touchscreen, 10-bit ADC resolution, and deep memory for extended signal capture. With 70 MHz bandwidth and up to 2.5 GS/s sample rate, it provides detailed signal analysis capabilities for education and professional troubleshooting.
Key Features
- 70 MHz analog bandwidth with 2 input channels
- 2.5 GS/s maximum sample rate
- 10 Msample standard memory, 20 Msample in interleaved mode
- 10-bit ADC for superior vertical resolution
- 10.1-inch capacitive touchscreen display (1280 × 800 pixels)
- Segmented memory for protocol signal capture (160 Msample total)
- MSO ready — supports up to 16 additional digital channels with option
- FFT frequency analysis with up to 128 kpoints
- Integrated 3-digit voltmeter and 6-digit frequency counter
- Mask test mode for pass/fail signal validation
- Waveform and pattern generator option available
Applications
- General-purpose signal analysis and troubleshooting
- Switched-mode power supply characterization
- Educational laboratory instruction
- Mixed-signal design debugging
- Frequency domain signal analysis
- Protocol signal analysis (I2C, SPI, UART, CAN/LIN with pattern generator)
Included Accessories
- RT-ZP03 passive probes (x 4)
- Power cable
- Getting Started Manual
- Basic Safety Instructions Brochure
Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 2 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 2.5 GS/s |
| Memory | 20 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTB 2 Series |
| Alternate Product Number | 1333.1005P40 |
| Includes | RTB 2 Series Digital Oscilloscope, RT-ZP03 probes x 4, Power cable, Getting Started Manual, Basic Safety Instructions Brochure |
