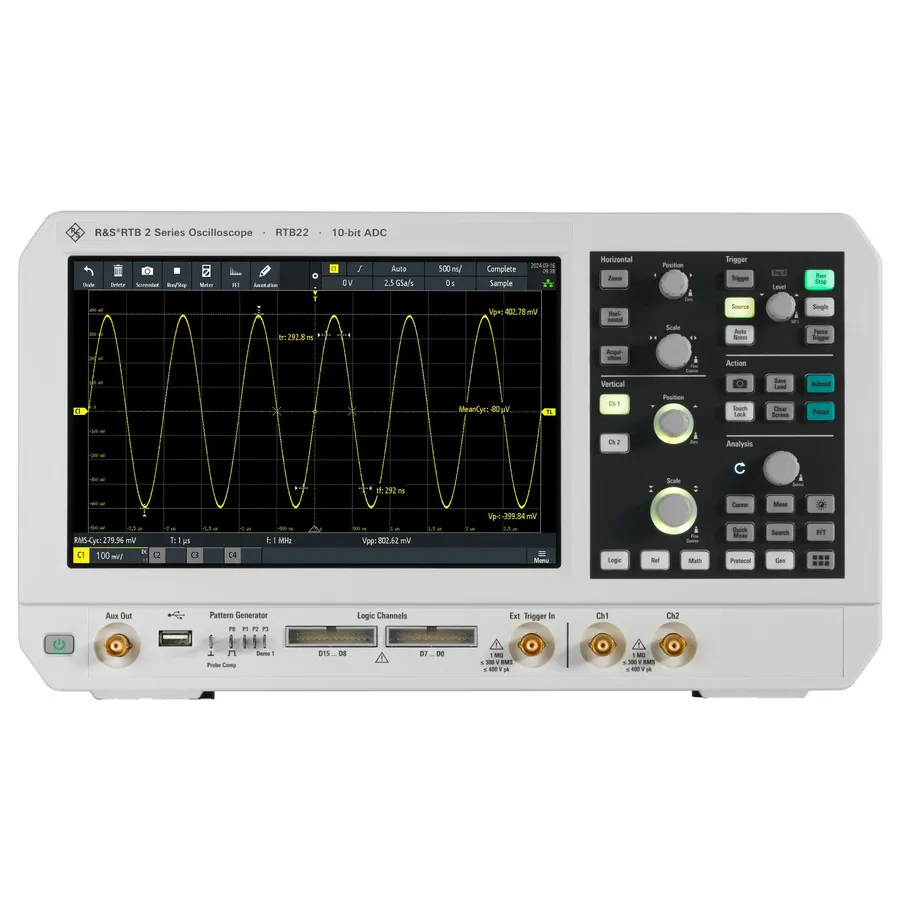

Rohde & Schwarz RTB22-300 Digital Oscilloscope

Overview

The Rohde & Schwarz RTB22-300 is a 300 MHz, 2-channel oscilloscope from the RTB 2 series. It features a high-resolution 10-bit analog-to-digital converter and a large 10.1-inch capacitive touchscreen display, making it an ideal general-purpose instrument for students, technicians, and engineers performing signal analysis and hardware debugging at higher bandwidths.

Key Features

• 300 MHz bandwidth with 2 analog channels (up to 16 digital channels with MSO option)
• 10-bit ADC with 1280 × 800 pixel display resolution for enhanced signal detail
• 2.5 GS/s maximum sample rate with up to 20 Msample memory per channel
• Segmented memory up to 160 Msample with history function for long acquisition sequences
• 10.1-inch capacitive touchscreen with grid annotation and split dual-window display
• FFT frequency analysis up to 128 kpoints with cursor measurements
• 3-digit digital voltmeter and 6-digit frequency counter per channel
• Optional waveform and pattern generator (up to 50 Mbit/s) for signal stimulus
• Mask test mode for quality and stability assessment

Applications

• Educational laboratory instruction and student measurement training
• Electronics prototyping and embedded systems design verification
• Signal integrity analysis and hardware troubleshooting
• Protocol triggering and decoding with optional generator

Included Accessories

• RT-ZP03 probes (4 pieces)
• Power cable
• Getting Started Manual
• Basic Safety Instructions Brochure
