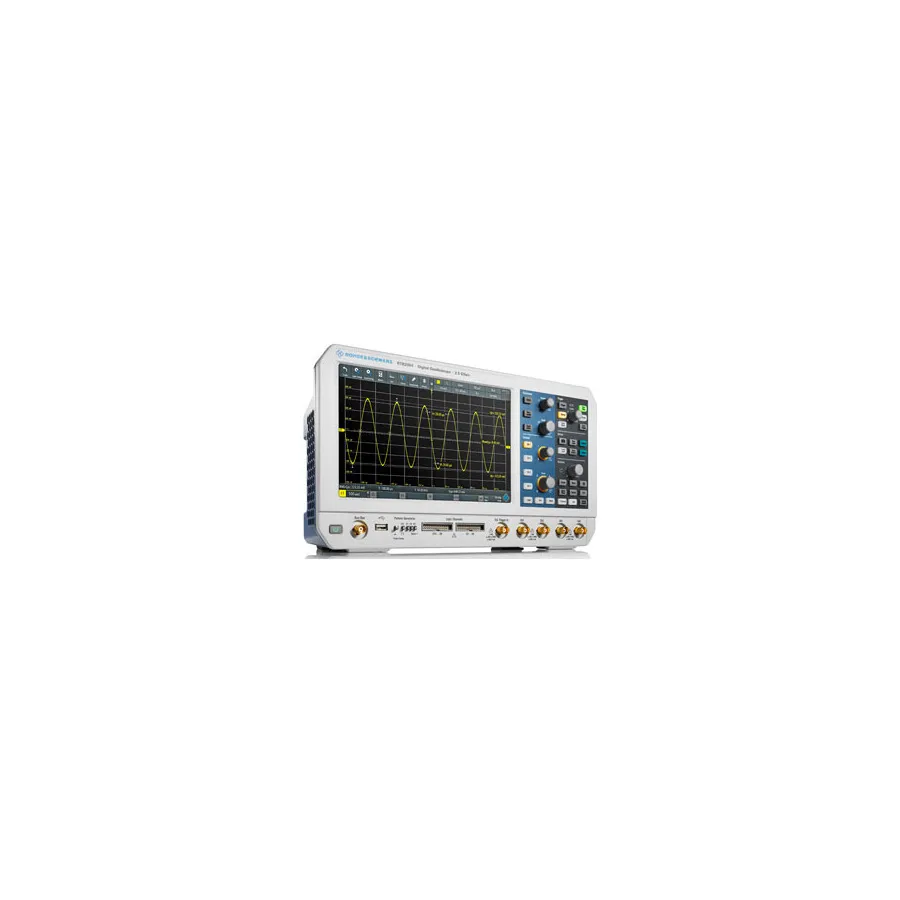

Rohde & Schwarz RTB2004 Digital Oscilloscope - Open Box
Request a quote
Rohde & Schwarz RTB2004 is a 4-channel 70 MHz oscilloscope with 10-bit ADC, 10.1" touchscreen, 2.5 GS/s sampling, and optional 16-channel MSO capability.
Product details
| Model | RTB2004 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTB2004 is a 4-channel, 70 MHz oscilloscope that combines affordability with advanced features for education, development, and production testing. With its 10.1" capacitive touchscreen, 10-bit analog-to-digital converter, and flexible software options, the RTB2004 provides the tools needed to debug analog and digital systems efficiently. The Power of Ten philosophy delivers outstanding capability: 10-bit ADC, 10 Msample memory, 10.1" display, and 10-second boot time.
Key Features
- 4-channel, 70 MHz bandwidth with up to 300 MHz upgrade options (100, 200, 300 MHz)
- 10-bit vertical resolution with 1 mV/div sensitivity for detailed signal capture
- 2.5 GS/s maximum sampling rate with 10 Msample memory per channel (20 Msample interleaved)
- 10.1" capacitive touchscreen display with 1280 × 800 resolution and gesture support
- Segmented memory: 160 Msample total with history function for extended acquisitions
- Optional MSO capability: up to 16 additional digital channels with RTB-B1 option
- Integrated waveform and pattern generator (RTB-B6) up to 50 Mbit/s
- Hardware-based protocol analysis: I2C, SPI, CAN/LIN, and UART/RS232
- Built-in 3-digit voltmeter (DVM) and 6-digit frequency counter per channel
- FFT-based frequency analysis with up to 128 kpoint resolution
- Mask test mode for signal compliance verification
- USB host (MTP), USB device, and LAN interfaces for connectivity and data transfer
- Built-in web server for remote access and MATLAB integration
Applications
- Educational laboratories: teaches oscilloscope measurement and signal analysis to students
- Embedded system design and debugging across analog and digital domains
- Switched-mode power supply characterization and troubleshooting
- Serial protocol development and validation (I2C, SPI, CAN, LIN, UART)
- Production and service departments for equipment testing and repair
- Prototype development and hardware validation
Included Accessories
- RTB2004 Oscilloscope
- RT-ZP03 passive voltage probes (one per channel)
- Power cable
- Getting Started Manual
- Basic Safety Instructions Brochure
Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 2.5 GS/s |
| Memory | 20 Mpts |
| Type | DSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTB2000 Series |
| Alternate Product Number | 1333.1005.04 |
