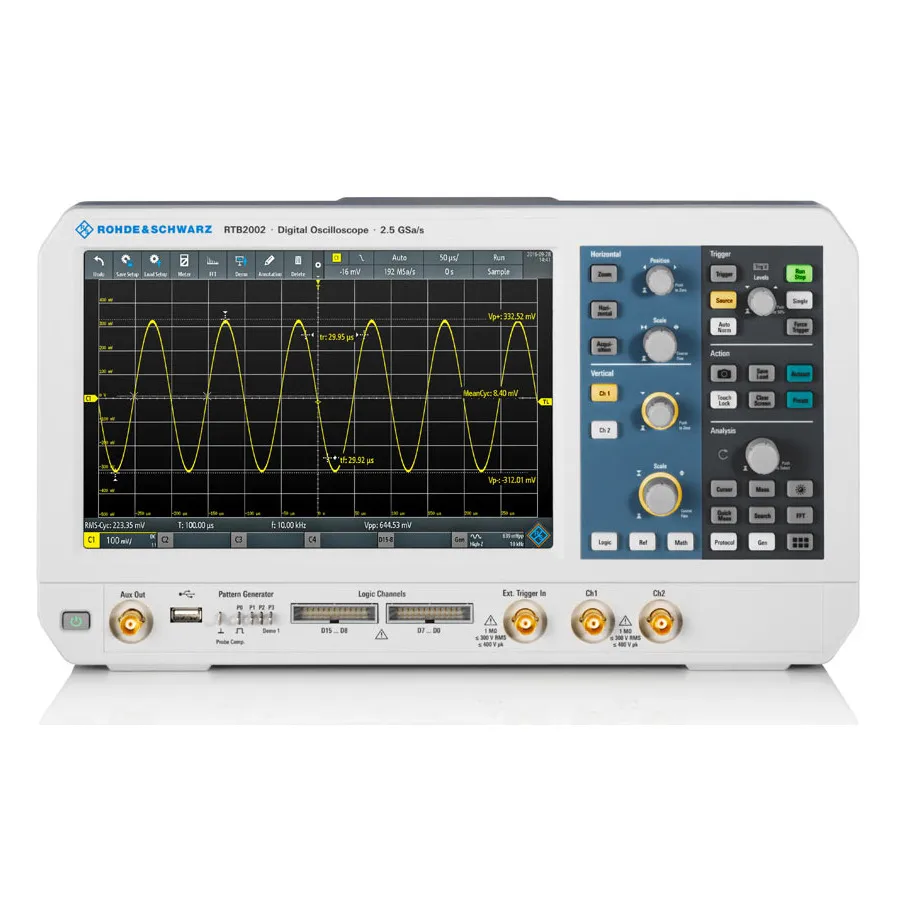

Rohde & Schwarz RTB2002EDU Educational Digital Oscilloscope

Overview

The Rohde & Schwarz RTB2002EDU is a specially configured educational edition of the RTB2000 series oscilloscope, designed for universities and educational institutions. This 2-channel, 70 MHz oscilloscope combines affordability with comprehensive functionality, including protocol analysis, arbitrary waveform generation, and frequency response analysis. The EDU edition unlocks all available software options, providing educators with highly functional equipment at significant savings compared to standard models.

Key Features

• 70 MHz bandwidth with 2 analog channels
• Integrated protocol analysis: I2C/SPI, UART/RS232, and CAN/LIN triggering and decoding
• Arbitrary waveform generator for stimulus generation and prototype development
• Frequency response analysis (Bode plot) for circuit characterization
• History and segmented memory for extended acquisition analysis
• Capacitive touchscreen display with intuitive gesture support
• 10-bit vertical resolution and 10 Msample memory per channel
• Password-protected education mode to disable automatic functions
• Built-in web server for classroom screen sharing and remote monitoring

Applications

• Oscilloscope training and education in university laboratories
• Analog and digital circuit analysis for students
• Embedded systems prototyping and debugging
• Serial protocol development and validation exercises
• Mixed-signal system design for educational projects

Included Accessories

• RT-ZP03 passive voltage probes (one per channel)
• Power cable
• Getting Started Manual
• Basic Safety Instructions
