Rohde & Schwarz RTB2-BNDL Oscilloscope Bundle

Overview

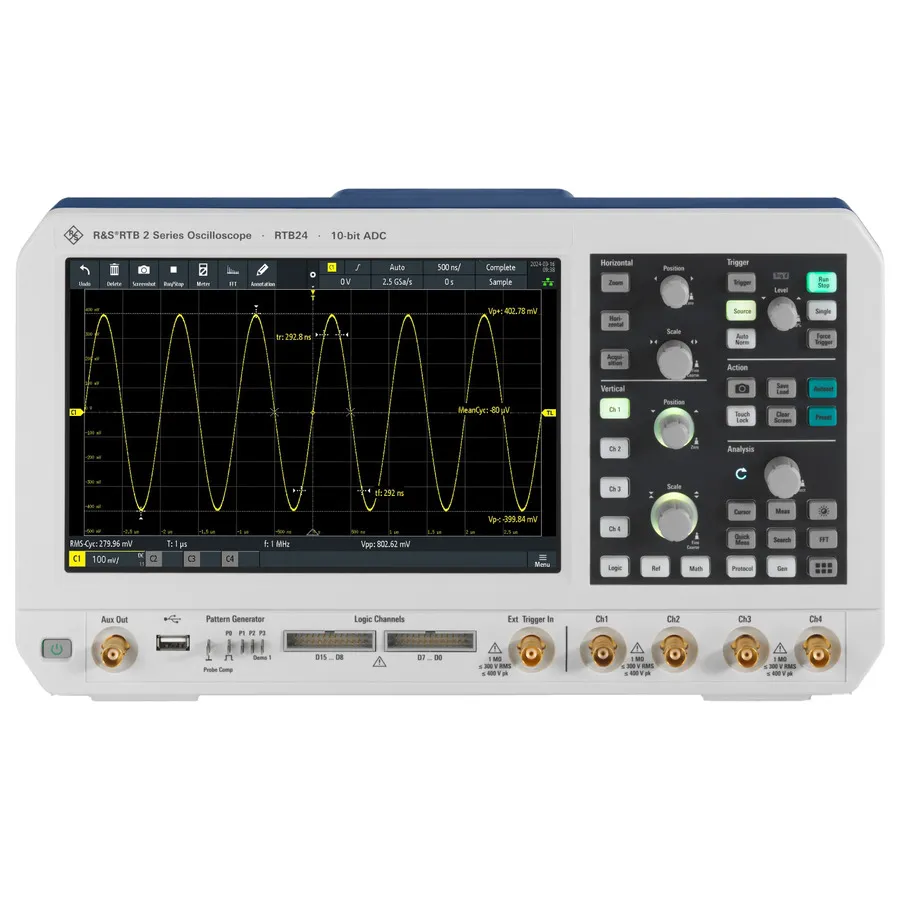

The Rohde & Schwarz RTB2-BNDL is a comprehensive oscilloscope bundle combining the RTB24-300 4-channel oscilloscope with a complete application bundle. This system delivers the Power of Ten — a 10-bit ADC, 10 Msample memory (20 Msample interleaved), 10.1" capacitive touchscreen, 10-second boot time, and integrated 10-in-1 instruments for general-purpose lab work. The bundle includes protocol analysis options for I2C/SPI, UART/RS232, CAN/LIN, and frequency response analysis, making it ideal for students, technicians, and engineers.

Key Features

• 4-channel, 300 MHz bandwidth oscilloscope with 2.5 GS/s sampling rate
• 10-bit analog-to-digital converter for superior signal detail and reduced noise
• 10.1" capacitive touchscreen with 1280 × 800 resolution for intuitive operation
• Up to 20 Msample memory depth in interleaved mode for longer signal captures
• Integrated waveform and pattern generator with arbitrary signal support (RTB-B6)
• Hardware-based protocol triggering and decoding: I2C/SPI (K1), UART/RS232 (K2), CAN/LIN (K3)
• History and segmented memory (160 Msample total) for extended analysis (RTB-K15)
• Frequency response analysis (Bode plot) for characterizing circuit behavior
• Bandwidth upgrade option to 300 MHz (RTB-B243)
• Optional mixed-signal capability: up to 16 digital channels with MSO add-on

Applications

• Embedded system design and debugging across analog and digital domains
• Switched-mode power supply analysis and characterization
• Serial protocol development and validation (I2C, SPI, CAN, LIN, UART)
• Educational laboratories and teaching environments
• Service and production test departments

Included Accessories

• RTB24-300 Oscilloscope
• RTB-B6 Waveform and Pattern Generator
• RTB-K15 History and Segment Memory
• RTB-B243 300 MHz Bandwidth Option
• RTB-PK1 Application Bundle (K1, K2, K3, K36)
• RT-ZP03 passive probes (4×)
• Power cable and documentation
