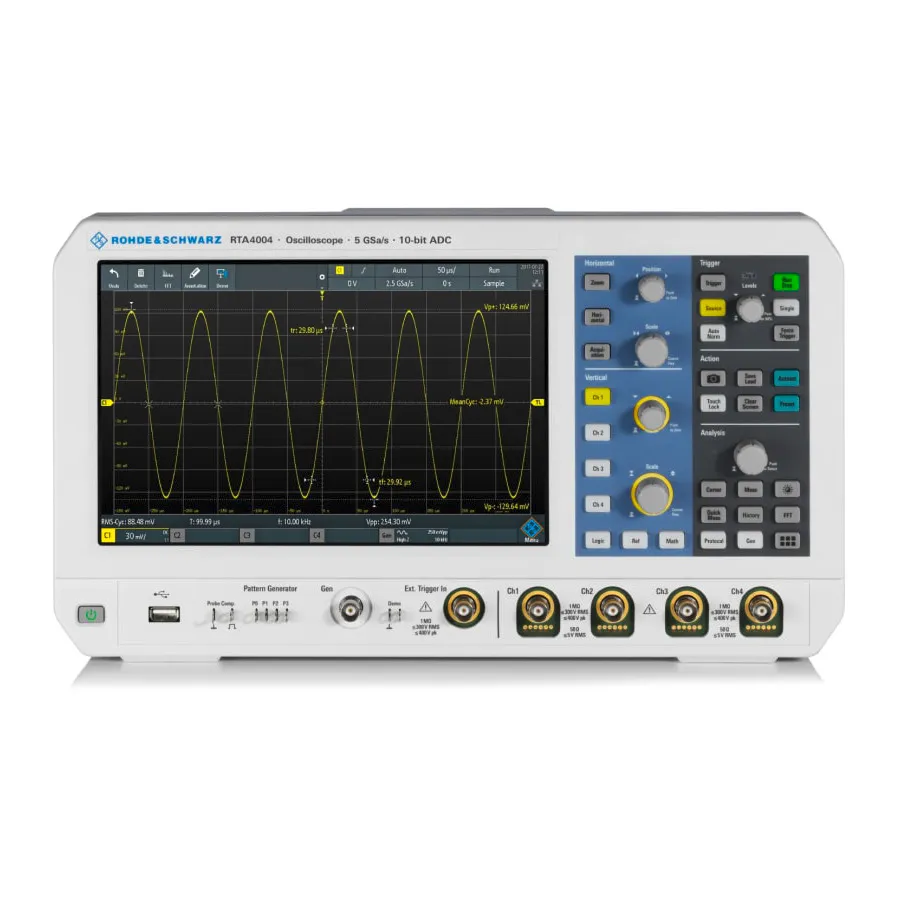

Rohde & Schwarz RTA4K-54M Digital Oscilloscope Package
Request a quote
4-channel digital oscilloscope with mixed-signal option, 500 MHz bandwidth upgrade, based on RTA4004 with 200 MHz base.
Product details
| Model | RTA4K-54M |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTA4K-54M is a 4-channel digital oscilloscope with integrated mixed-signal analysis capabilities. This package combines the RTA4004 base platform with the RTA-B245 bandwidth upgrade and RTA-B1 mixed-signal option, enabling simultaneous measurement of analog and digital signals at 500 MHz bandwidth for comprehensive system analysis.
Key Features
- 4 analog channels with isolated measurement capability
- Mixed-signal option (RTA-B1) for concurrent digital and analog analysis
- 500 MHz analog bandwidth (via RTA-B245 upgrade)
- 200 MHz base platform with upgrade flexibility
- Advanced triggering and analysis tools
- RTA4000 series professional architecture
Applications
- Mixed-signal circuit debugging and verification
- High-speed digital and analog signal analysis
- Telecommunications and signal integrity testing
- Complex embedded system development
- Research and laboratory testing
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 200 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTA4000 Series |
| Alternate Product Number | 1335.7700P55 |
