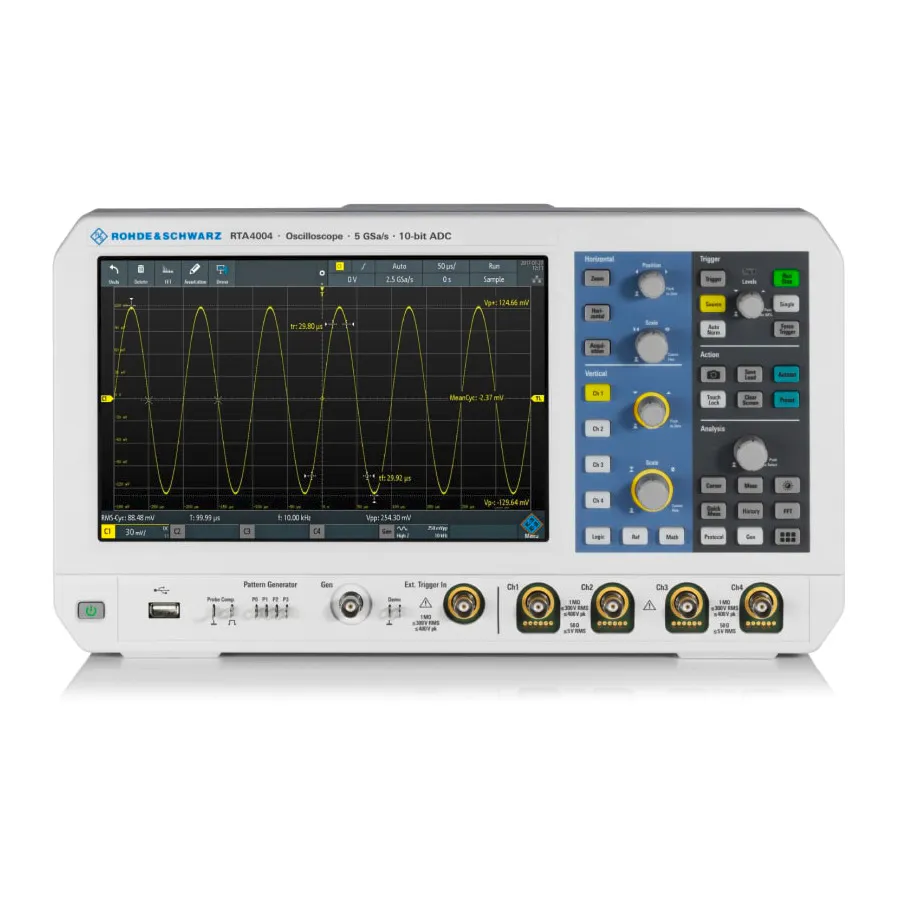

Rohde & Schwarz RTA4K-104M Digital Oscilloscope
Request a quote
Rohde & Schwarz RTA4K-104M is a 4-channel digital oscilloscope with 1 GHz bandwidth and mixed signal measurement capability for comprehensive signal analysis.
Product details
| Model | RTA4K-104M |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RTA4K-104M is a 4-channel digital oscilloscope package configured with 1 GHz bandwidth and mixed signal measurement capability. This package includes the RTA4004 base unit combined with the RTA-B2410 bandwidth upgrade module and the RTA-B1 mixed signal option. The mixed signal capability allows simultaneous analysis of analog and digital signals, making it ideal for complex system debugging and validation.
Key Features
- 4 analog channels plus mixed signal measurement capability
- 1 GHz bandwidth (base 200 MHz + RTA-B2410 upgrade)
- Mixed signal analysis for simultaneous analog and digital measurement
- Professional-grade acquisition and analysis capabilities
- Compact form factor suitable for lab and field use
- Standard interface connectivity for automated testing
Applications
- Mixed-signal circuit design and debugging
- Power supply and signal integrity analysis
- Embedded system development and testing
- Education and technical training
- Research and development testing
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 200 Mpts |
| Type | MSO |
| Vertical Resolution | 10 bit |
| Display Type | 10.1 WXGA Capacitive Color Touch |
| Series | RTA4000 Series |
| Alternate Product Number | 1335.7700P65 |
