Rohde & Schwarz RTA-BNDL Oscilloscope Bundle

Overview

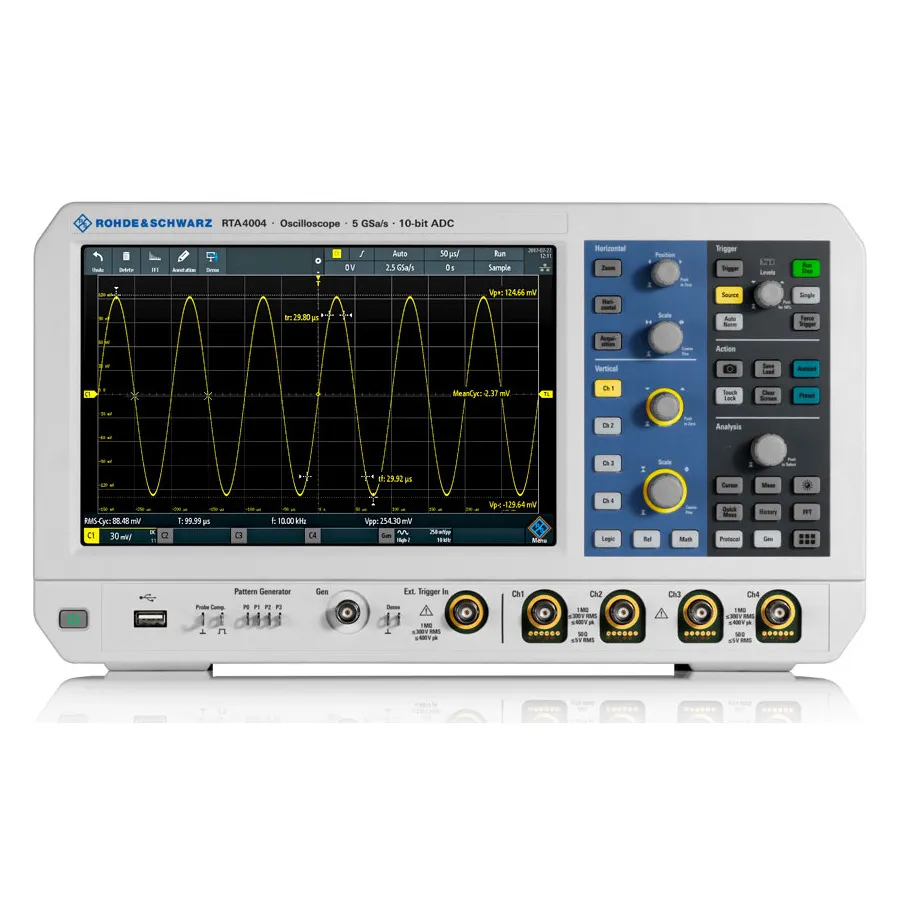

The Rohde & Schwarz RTA4004 is a 4-channel, 1 GHz digital oscilloscope with integrated logic analyzer, protocol analyzer, spectrum analyzer, and arbitrary waveform/pattern generator. It combines a 10-bit analog-to-digital converter with up to 1 Gsample deep memory and a 10.1-inch touchscreen for comprehensive signal analysis and debugging.

Key Features

• 4-channel input with 1 GHz bandwidth and 2.5 Gsample/s sampling rate
• 10-bit ADC with up to 16-bit resolution for enhanced signal detail
• Deep acquisition memory: 100 Msample per channel standard, 200 Msample interleaved, 1 Gsample in history mode
• 500 µV/div vertical sensitivity at full measurement bandwidth
• Segmented memory with 1 Gsample capacity and variable segment sizes up to 200 Msample
• Class-leading low noise and ±0.5 ppm timebase accuracy
• Protocol-aware triggering and decoding for I2C, SPI, UART, RS-232, CAN, LIN, I2S, MIL-STD-1553, and ARINC 429
• Integrated logic analyzer with table view of packets and frames
• Spectrum analyzer with FFT and spectrogram display
• Arbitrary waveform and pattern generator with 14-bit resolution
• Power analysis with ripple and PARD measurement
• Frequency response analysis capabilities
• 10.1-inch capacitive touchscreen with intuitive interface
• Standard 3-year warranty

Applications

• Power Integrity: DC offset measurement with ripple and PARD analysis using spectrum view
• Power Analysis: High-resolution signal measurement, long-duration signal capture, and µA to kA current measurement
• EMI Debugging: Near-field probe measurement with time and frequency domain correlation
• Serial Protocol Analysis: I2C, SPI, UART, CAN, LIN, and aerospace protocol debugging

Included Accessories

• RTA4004 Four-Channel 1 GHz Oscilloscope
• RTA-PK1 Application Bundle with protocol decode licenses: I2C/SPI, UART/RS-232, CAN/LIN, I2S, MIL-STD-1553, ARINC 429, Power Analysis, Frequency Response Analysis, and Spectrum Analysis
• RT-ZP10 Passive Probes (4x)
