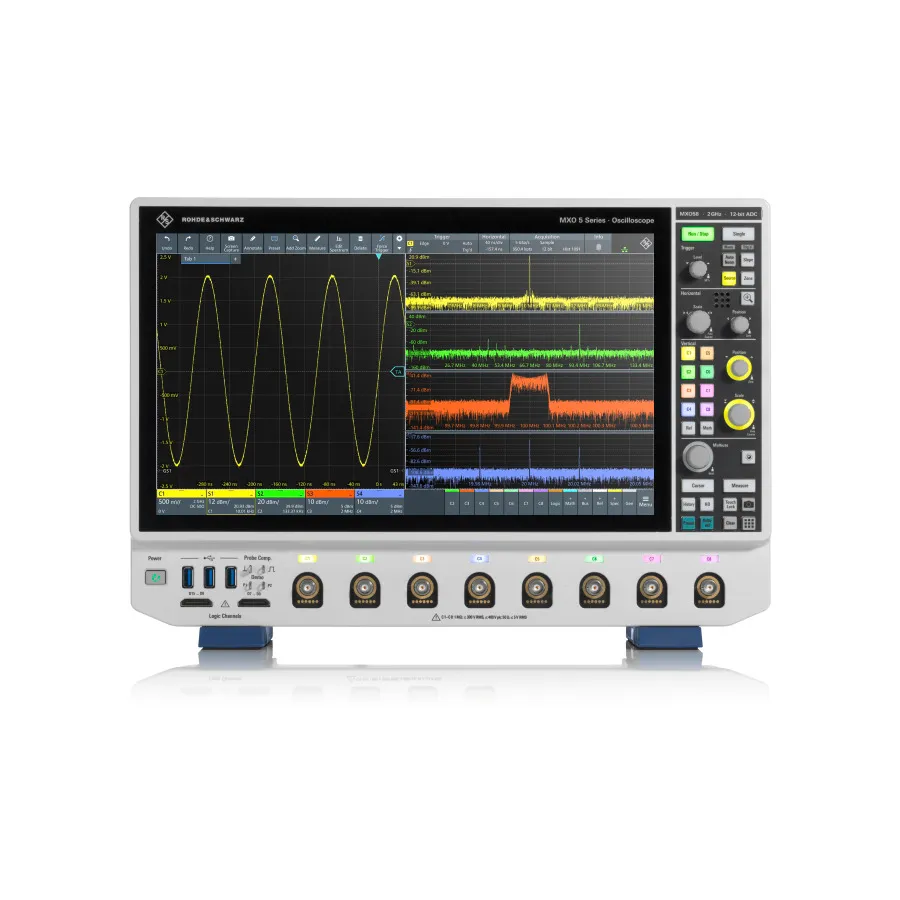

Rohde & Schwarz MXO58/500 Oscilloscope

Overview

The Rohde & Schwarz MXO58/500 is an 8-channel oscilloscope delivering next-generation testing performance. Part of the MXO 5 series, it combines breakthrough signal acquisition and analysis capabilities with an intuitive 15.6" Full HD capacitive touchscreen. With 500 MHz bandwidth, 4.5 million waveforms per second, and advanced frequency domain analysis, this oscilloscope enables engineers to capture intricate signal details and rare events with exceptional precision.

Key Features

• 8 channels with 500 MHz bandwidth
• 4.5 million waveforms per second update rate and 18 million waveforms per second across multiple channels
• 45,000 FFTs per second for spectrum analysis
• 500 Mpts of memory per channel with 10,000 segmented memory segments
• 12-bit ADC with 18-bit vertical resolution architecture and 10-bit ENOB
• 1 ps trigger jitter with 0.0001 vertical division trigger sensitivity
• Zone trigger on analog, spectrum, and math functions
• 10,000 acquisition history captures
• Full bandwidth vertical scaling down to 500 µV/div

Applications

• EMI and harmonic testing
• Complex signal characterization and circuit behavior analysis
• Detection and isolation of signal anomalies
• High-resolution frequency domain analysis
• Protocol analysis and validation

Included Accessories

• 700 MHz passive probe (10:1) — 1 per channel (8 total)
• Accessories bag
• Quick start guide
• Power cord
