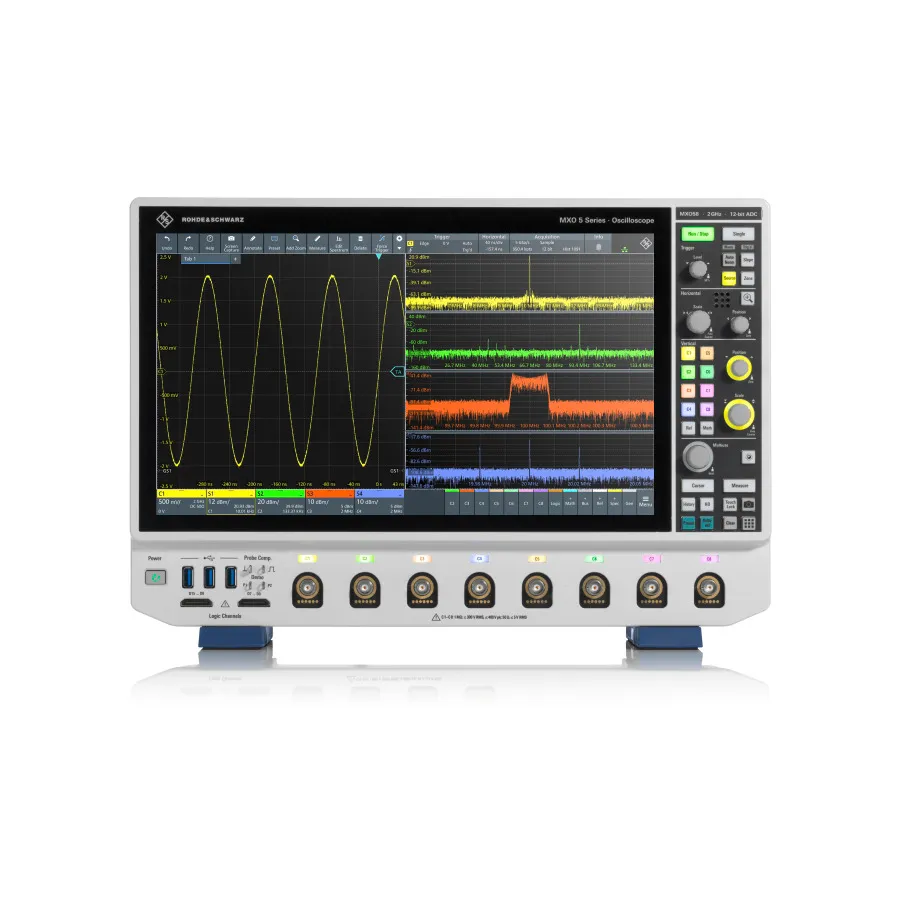

Rohde & Schwarz MXO58/2000 Oscilloscope
Request a quote
Rohde & Schwarz MXO58/2000 8-channel 2GHz oscilloscope with 4.5M waveforms/s, 12-bit ADC, 500Mpts memory, and advanced analysis capabilities.
Product details
| Model | MXO58/2000 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO58/2000 is a high-performance 8-channel oscilloscope with 2GHz bandwidth designed for demanding high-speed signal analysis. It combines rapid acquisition rates with deep memory to capture complex signal behavior, making it ideal for RF, communications, and high-speed digital testing applications.
Key Features
- 8 channels, 2GHz bandwidth, 1.25 Giga-samples/second
- 4.5 million waveforms/s acquisition rate, 18 million waveforms/s across channels
- 12-bit ADC with 18-bit vertical resolution architecture
- 500 Mpoints standard memory (expandable to 1 Gpts)
- 45,000 FFTs per second for spectrum analysis
- Digital triggering on all 8 channels with 1 ps jitter
- 15.6" Full HD capacitive touchscreen
- Segmented memory with 10,000 segments and 10,000 history acquisitions
Applications
- High-speed digital design and verification
- RF and microwave signal analysis
- Communications protocol testing
- Signal integrity and timing measurements
- EMI and harmonic characterization
Included Accessories
- 700 MHz passive probes (1 per channel, 10:1 ratio)
- Accessories bag
- Quick Start Guide
- Power cord
Specifications
| Bandwidth | 2 GHz |
| Analog Channels | 8 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 1.25 GS/s |
| Memory | 500 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 LC TFT Capacitive Color Touch |
| Series | MXO 5 Series |
| Alternate Product Number | 1802.1008P92 |
