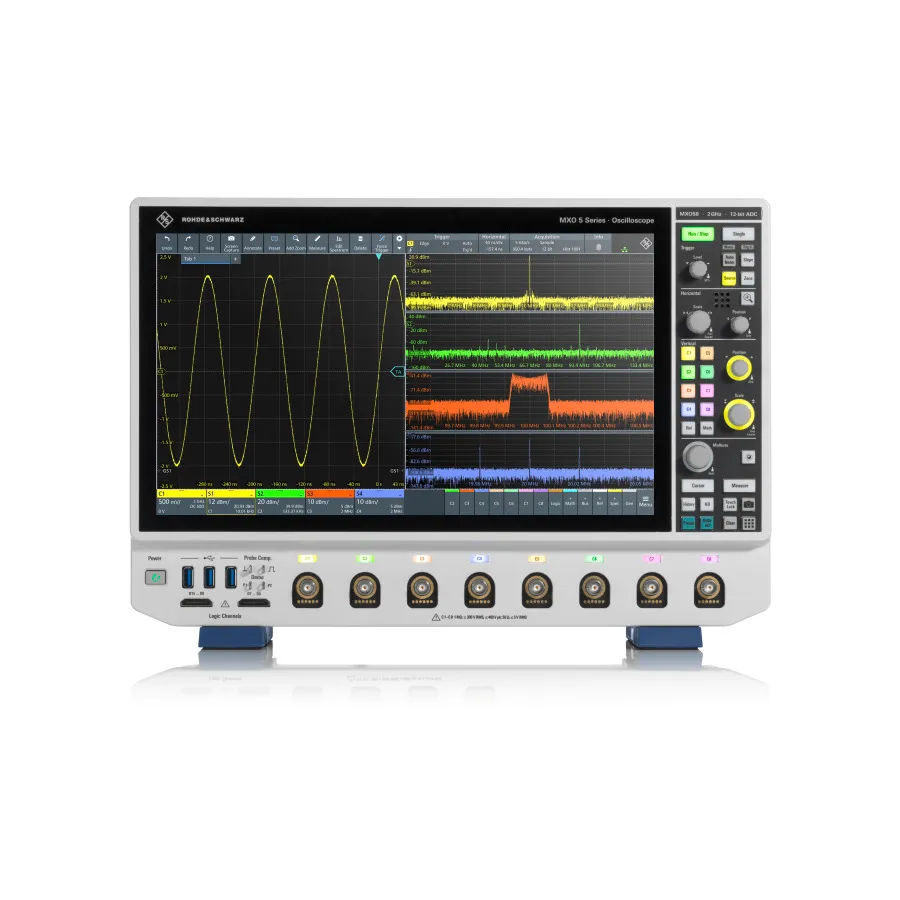

Rohde & Schwarz MXO58-PRO Oscilloscope Bundle
Request a quote
Rohde & Schwarz MXO58-PRO is a professional 8-channel oscilloscope with 500 MHz bandwidth and comprehensive analysis options for automotive, aerospace, and serial protocols.
Product details
| Model | MXO58-PRO |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO58-PRO is a professional-grade 8-channel oscilloscope with 500 MHz bandwidth and a comprehensive suite of analysis options. It provides capabilities for automotive protocol testing, aerospace systems analysis, and detailed signal characterization, making it suitable for design engineers and test specialists in regulated industries.
Key Features
- 8 channels with 500 MHz bandwidth
- 12-bit ADC with 18-bit vertical resolution in HD mode
- 500 Mpoints standard memory per channel
- 4.5 million waveforms per second acquisition rate
- MXO5-B6 arbitrary waveform generator
- MXO5-K31 power analysis for power integrity
- MXO5-K36 frequency response analysis
- Automotive protocols: CAN, CAN-FD, LIN, automotive Ethernet
- Aerospace protocols: ARINC-429, MIL-STD-1553
- Serial bus decoding: I2C, SPI, UART, MIPI protocols
- 45,000 FFTs per second spectrum analysis
Applications
- Automotive system development and validation
- Aerospace protocol analysis and testing
- Serial communication protocol debugging
- Power integrity and signal integrity measurements
- Mixed-signal system characterization
- Frequency response and modulation analysis
Included Accessories
- MXO5-B285 500 MHz bandwidth upgrade
- MXO5-B6 arbitrary waveform generator
- Analysis and protocol options (Power, Frequency Response, Serial Buses, Automotive, Aerospace, MIPI)
- 700 MHz passive probe (10:1) — one per channel
- Accessories bag
- Quick start guide
- Power cord
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 8 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 500 Mpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 LC TFT Capacitive Color Touch |
| Series | MXO 5 Series |
| Alternate Product Number | 1802.1008P98 |
| Includes | MXO 5 series oscilloscope 8 channel, MXO5-B285 500 MHz Option, MXO5-B6 ARB Generator, MXO5-K510 Low Speed Serial Buses, MXO5-K520 Automotive Protocols, MXO5-K530 Aerospace Protocols, MXO5-K31 Power Analysis, MXO5-K36 Freq. Response Analysis, MXO5-K550 MIP |
