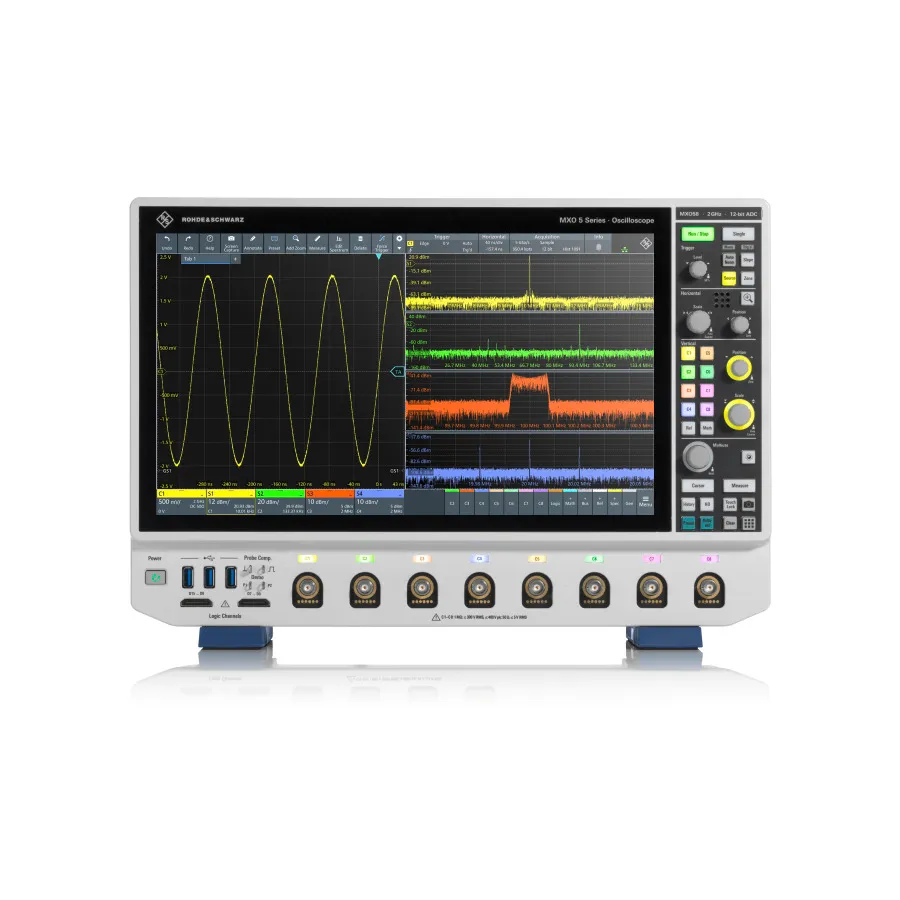

Rohde & Schwarz MXO58-BASC Oscilloscope Bundle
Request a quote
Rohde & Schwarz MXO58-BASC bundle includes an 8-channel 100 MHz oscilloscope with 500 Mpoints memory and MXO5-B6 arbitrary waveform generator.
Product details
| Model | MXO58-BASC |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO58-BASC bundle combines an 8-channel oscilloscope with the MXO5-B6 arbitrary waveform generator, providing both measurement and signal generation capabilities. This bundle is designed for engineers who need to test electronic systems with precise signal generation and simultaneous multi-channel analysis.
Key Features
- 8 channels with 100 MHz bandwidth
- 12-bit ADC with 18-bit vertical resolution in HD mode
- 500 Mpoints standard memory per channel
- 4.5 million waveforms per second acquisition rate
- MXO5-B6 arbitrary waveform generator for signal synthesis
- 45,000 FFTs per second spectrum analysis
- Zone trigger on analog, spectrum, and math functions
- 15.6" Full HD capacitive touchscreen
Applications
- Electronic system testing with synchronized waveform generation
- Frequency response measurements
- EMI and harmonic analysis
- RF circuit testing and validation
- Design verification and prototyping
Included Accessories
- MXO5-B6 Arbitrary Waveform Generator
- 700 MHz passive probe (10:1) — one per channel
- Accessories bag
- Quick start guide
- Power cord
Specifications
| Bandwidth | 100 MHz |
| Analog Channels | 8 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 500 Mpts |
| Type | DSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 LC TFT Capacitive Color Touch |
| Series | MXO 5 Series |
| Alternate Product Number | 1802.1008P97 |
| Includes | MXO 5 series oscilloscope 8 channel, MXO5-B6 ARB Generator |
