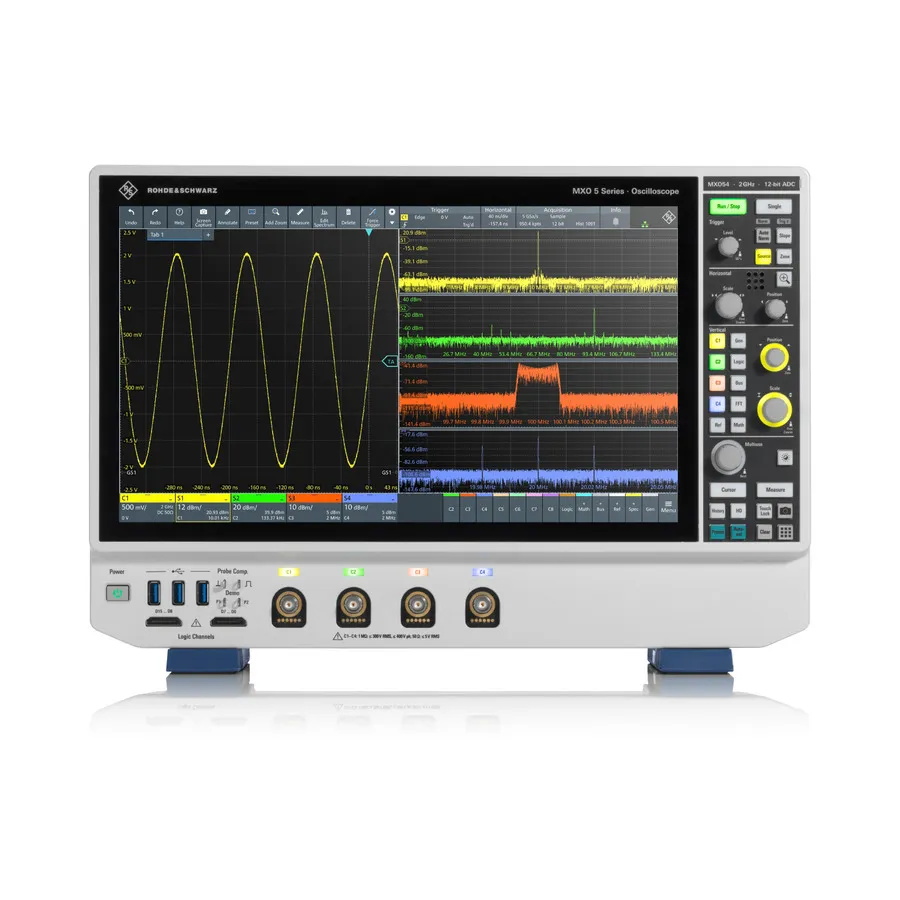

Rohde & Schwarz MXO54/500 Digital Oscilloscope

Overview

The Rohde & Schwarz MXO54/500 is a versatile 4-channel digital oscilloscope offering excellent performance for general-purpose electronic testing and signal analysis. With 500 MHz bandwidth and 4.5 million waveforms per second update rate, it provides reliable measurements for debugging, verification, and characterization of electronic circuits and systems.

Ideal for design engineers and field technicians, the MXO54/500 combines 12-bit vertical resolution with digital triggering on all channels and advanced spectrum analysis. The responsive 15.6-inch Full HD touchscreen and compact interface minimize test time while the deep 500 Mpoints memory enables extended signal capture and detailed waveform analysis.

Key Features

• 4-channel configuration with 500 MHz bandwidth
• 2.5 GS/s sampling rate with 500 Mpoints standard memory
• 12-bit ADC with 18-bit vertical resolution architecture
• 4.5 million waveforms per second acquisition rate
• 45,000 FFTs per second for spectrum analysis
• Digital triggering on all channels with 0.0001 vertical division sensitivity
• Zone trigger capability on analog, spectrum, and math functions
• 1 ps trigger jitter for precise measurements
• Segmented memory: 10,000 segments and 10,000 acquisition history

Applications

• Digital and analog circuit debugging
• Signal integrity analysis
• Educational electronics testing
• Power supply and regulator measurement
• Embedded systems validation
• Laboratory and field troubleshooting

Included Accessories

• 700 MHz passive probe (10:1) — 4 probes (1 per channel)
• Accessories bag
• Quick start guide
• Power cord
