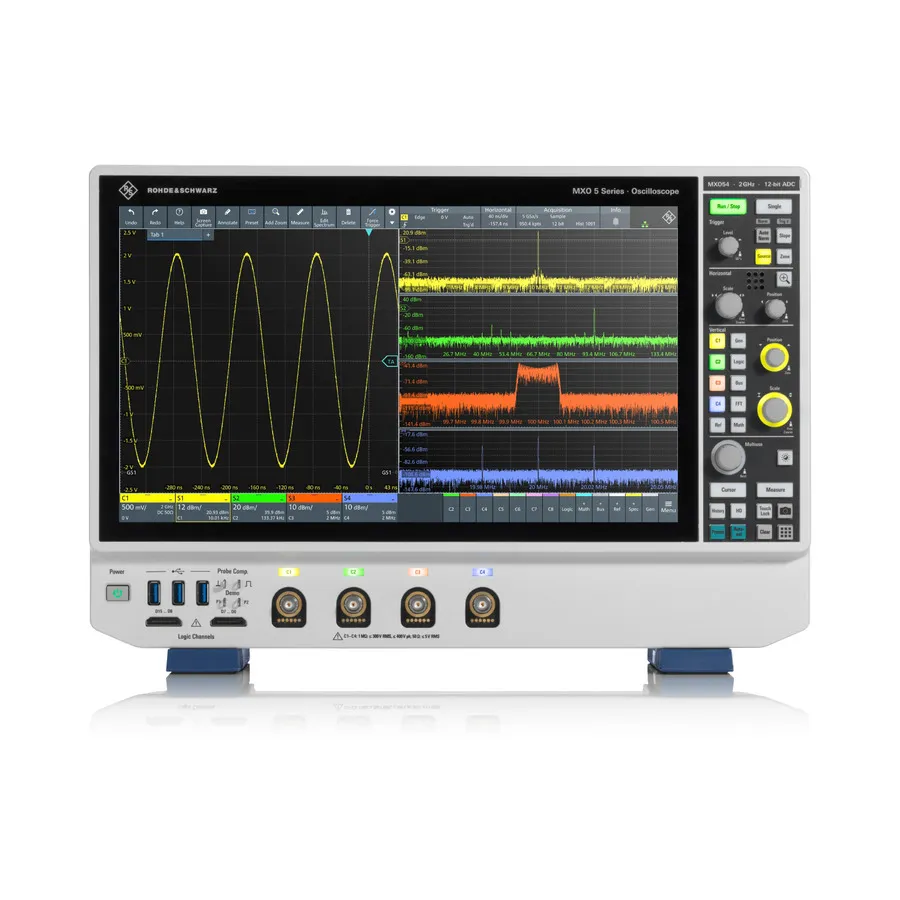

Rohde & Schwarz MXO54/1000 Digital Oscilloscope

Overview

The Rohde & Schwarz MXO54/1000 is a 4-channel digital oscilloscope delivering breakthrough performance for modern electronic testing. With 1 GHz bandwidth and 4.5 million waveforms per second update rate, it captures intricate signal details and infrequent events with exceptional precision in both time and frequency domains.

Engineered for design validation and signal characterization, the MXO54/1000 combines 12-bit vertical resolution with advanced triggering accuracy and deep memory. The 15.6-inch Full HD capacitive touchscreen provides intuitive control while the low-noise design ensures reliable measurements across demanding applications.

Key Features

• 4-channel configuration with 1 GHz bandwidth
• 2.5 GS/s sampling rate with 500 Mpoints standard memory
• 12-bit ADC with 18-bit vertical resolution architecture
• 4.5 million waveforms per second acquisition rate
• 45,000 FFTs per second for spectrum analysis
• Digital triggering on all channels with 0.0001 vertical division sensitivity
• Zone trigger capability on analog, spectrum, and math functions
• 1 ps trigger jitter for precise timing measurements
• Segmented memory: 10,000 segments and 10,000 acquisition history

Applications

• Electronic circuit design and validation
• Signal integrity and timing analysis
• EMI and harmonic testing
• RF signal characterization
• Power electronics measurement
• Educational and research applications

Included Accessories

• 700 MHz passive probe (10:1) — 4 probes (1 per channel)
• Accessories bag
• Quick start guide
• Power cord
