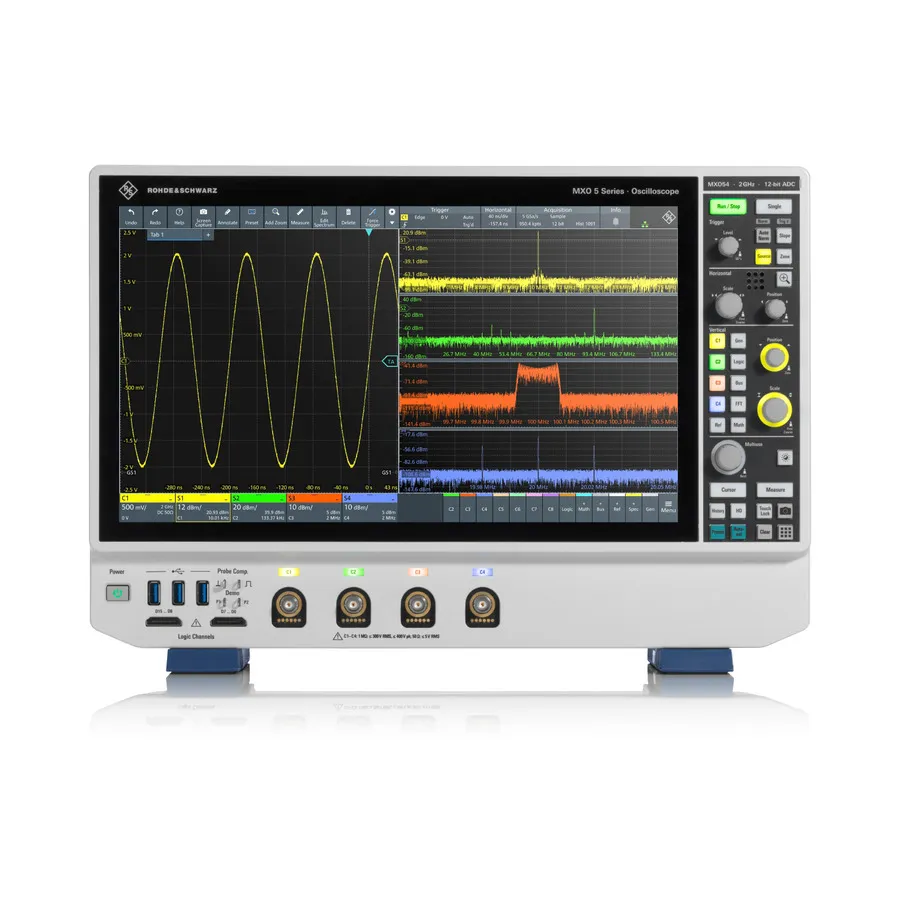

Rohde & Schwarz MXO54-PRO Digital Oscilloscope

Overview

The Rohde & Schwarz MXO54-PRO is a 4-channel digital oscilloscope from the MXO 5 series with 500 MHz bandwidth and integrated protocol analysis capabilities. Designed for engineers debugging serial communication interfaces and automotive/aerospace protocols, this oscilloscope combines high-speed acquisition with comprehensive software options for modern electronic systems.

With 500 Mpts standard memory, 12-bit ADC resolution, and 4.5 million acquisitions per second, the MXO54-PRO delivers the precision and speed needed for complex signal analysis. The included software bundle provides low-speed serial bus decoding (I2C, SPI, UART), automotive protocols (CAN, LIN), aerospace protocols, power analysis, and frequency response capabilities.

Key Features

• 4 channels with 500 MHz bandwidth
• 12-bit ADC with 18-bit vertical resolution architecture
• 500 Mpts standard memory per channel with segmented memory
• 4.5 million waveforms per second acquisition rate
• 45,000 FFTs per second for spectrum analysis
• Zone trigger on analog, spectrum and math channels
• Integrated serial bus analysis: I2C, SPI, UART, RS-232, RS-422, RS-485, Quad-SPI
• Automotive protocol support: CAN, CAN-FD, LIN, SENT
• Aerospace protocol support: ARINC-429, MIL-STD-1553, SpaceWire

Applications

• Serial protocol debugging and validation
• Automotive system testing and diagnostics
• Aerospace protocol analysis
• Power consumption analysis
• Frequency response and jitter measurements
• EMI and signal integrity analysis

Included Accessories

• 700 MHz passive probe (10:1) - 1 per channel
• MXO5-B245 500 MHz bandwidth upgrade
• MXO5-B6 Arbitrary Waveform Generator
• Protocol and analysis software bundle
• Accessories Bag
• Quick Start Guide
• Power Cord
