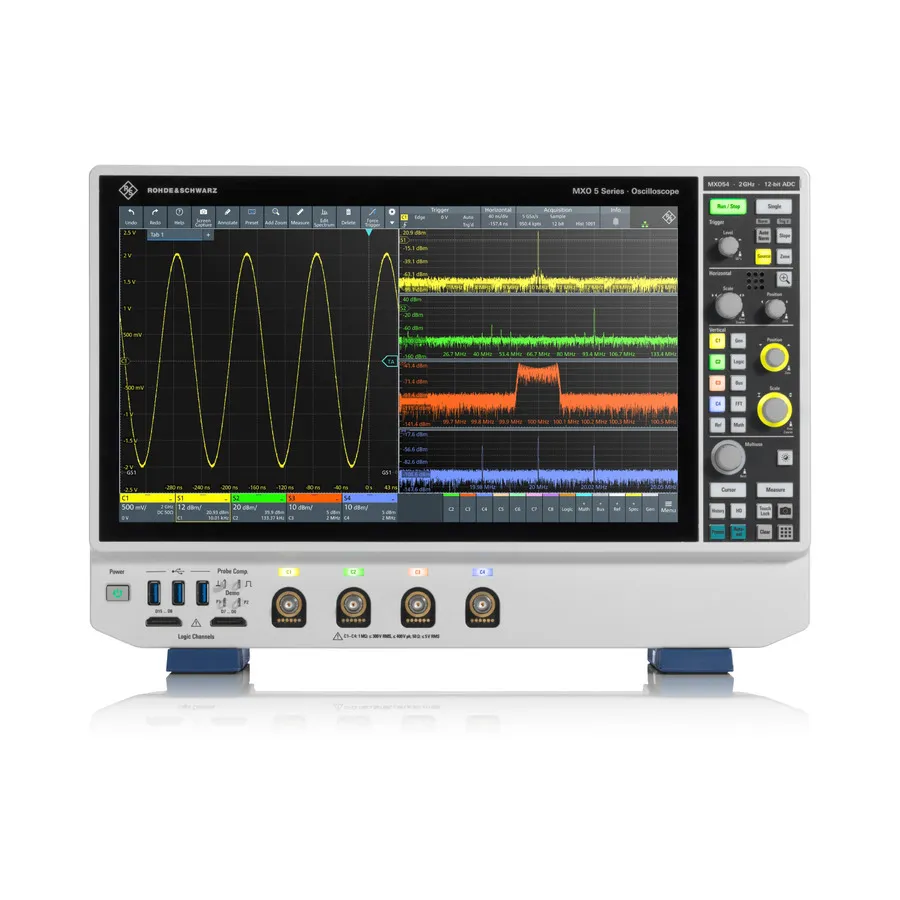

Rohde & Schwarz MXO54 Oscilloscope
Request a quote
The Rohde & Schwarz MXO54 is a 4-channel digital oscilloscope with industry-leading 4.5 million waveforms per second update rate and 45,000 FFTs per second for comprehensive signal analysis.
Product details
| Model | MXO54 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO54 is a 4-channel digital oscilloscope designed for next-generation signal analysis and testing. It delivers breakthrough oscilloscope technology with the industry's fastest acquisition rate of 4.5 million waveforms per second and 45,000 FFTs per second, enabling engineers to capture intricate signal details and infrequent events with exceptional precision.
Key Features
- 4-channel configuration with 350 MHz bandwidth
- World's fastest update rate: 4.5 million waveforms per second
- Advanced spectrum analysis: up to 45,000 FFTs per second
- 12-bit ADC with 18-bit vertical resolution architecture
- 500 Mpoints standard memory per channel
- 10,000 segmented memory and history mode acquisitions
- Digital zone trigger on analog, spectrum, and math signals
- 15.6" Full HD capacitive touchscreen display
- Minimal noise: 130 µV at 1 mV/div at full 2 GHz bandwidth
Applications
- General signal analysis and troubleshooting
- Embedded systems development and validation
- Power integrity and signal integrity analysis
- EMI and harmonic testing
- High-speed digital and analog circuit characterization
Included Accessories
- 700 MHz passive probe (10:1) — one per channel
- Accessories bag
- Quick start guide
- Power cord
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 2.5 GS/s |
| Memory | 500 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 15.6 LC TFT Capacitive Color Touch |
| Series | MXO 5 Series |
| Alternate Product Number | 1802.1008.04 |
