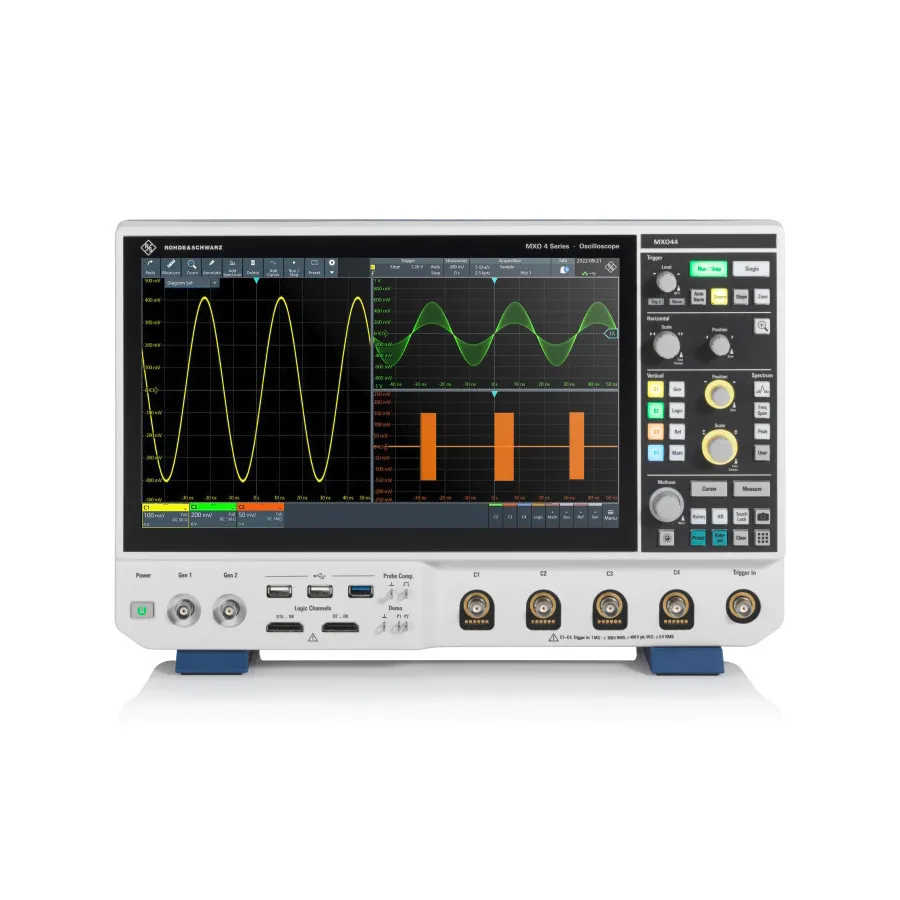

Rohde & Schwarz MXO44/245 Digital Oscilloscope

Overview

Rohde & Schwarz MXO44/245 is a 4-channel digital oscilloscope in the MXO 4 Series, offering exceptional signal acquisition and analysis capabilities. With a 500MHz bandwidth, 5GS/s sample rate, and 400Mpts acquisition memory across all four channels simultaneously, it delivers industry-leading performance for advanced measurement and debugging tasks.

Key Features

• World's fastest real-time update rate exceeding 4.5 million acquisitions per second
• 12-bit ADC resolution across all sample rates, with 18-bit architecture and HD mode available
• 400Mpts standard memory on all four channels (industry's deepest)
• True vertical scaling down to 500 μV/div with ±5V offset range
• World's most sensitive trigger at 0.00001 vertical divisions with <1ps jitter
• Trigger rearm time less than 21ns
• Superior spectrum analysis with industry-leading 45,000 FFT/s update rate
• 13.3" Full HD capacitive touchscreen with intuitive user interface
• Optional upgrades available: MSO, Arbitrary Waveform Generator, Extended Memory, Serial Bus analysis, Protocol options

Applications

• Signal acquisition and waveform analysis
• Circuit debugging and troubleshooting
• Spectrum analysis and frequency response measurement
• Serial bus protocol analysis (with optional features)
• Aerospace and automotive applications (with protocol options)

Included Accessories

• 700MHz Passive Probe (10:1) - one per channel
• Accessories bag
• Quick Start Guide
• Power Cord
