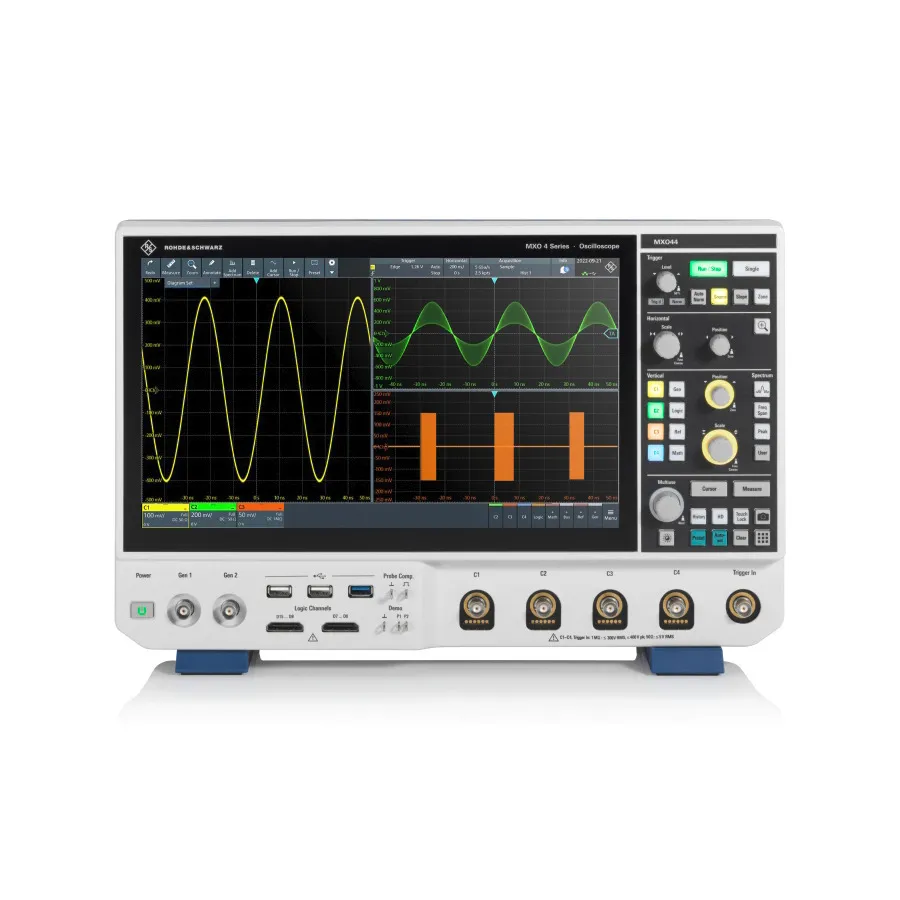

Rohde & Schwarz MXO44/2415 Oscilloscope
Request a quote
Rohde & Schwarz MXO44/2415 4-channel oscilloscope with 1.5GHz bandwidth, 400Mpts memory, 5GS/s sample rate, and 12-bit ADC.
Product details
| Model | MXO44/2415 |
| Manufacturer | Rohde & Schwarz |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz MXO44/2415 is a 4-channel digital oscilloscope with 1.5GHz bandwidth and 400Mpts standard acquisition memory. Part of the MXO 4 series, it delivers high update rates, 12-bit resolution, and optional analysis modules for various measurement applications.
Key Features
- 4 channels with 1.5GHz bandwidth and 5GS/s sample rate
- 400Mpts standard acquisition memory on all 4 channels simultaneously
- 12-bit ADC with 18-bit architecture in HD mode
- Waveform update rate of 4.5 million acquisitions per second
- Vertical resolution down to 500 µV/div with ±5 V offset range
- Trigger jitter of 1 ps with 0.00001 division trigger sensitivity
- Spectrum update rate of 45,000 FFT/s
- 13.3-inch Full HD capacitive touchscreen
Optional Upgrades
- MSO (Mixed Signal Oscilloscope) option
- Arbitrary Waveform Generator
- Memory Extension to 800Mpts
- Low Speed Serial Bus protocols
- Automotive Protocols module
- Aerospace Protocols module
- MIPI Low Speed Protocols
- Power Analysis module
- Frequency Response Analysis module
Included Accessories
- 700 MHz Passive Probe (10:1) - 1 per channel
- Accessories Bag
- Quick Start Guide
- Power Cord
Specifications
| Bandwidth | 1.5 GHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 5 GS/s |
| Memory | 400 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 13.3 LC TFT Capacitive Color Touch |
| Series | MXO 4 Series |
| Alternate Product Number | 1335.5050P15 |
| Includes | 700 MHz Passive Probe (10:1) - 1 per channel; Accessories Bag - 1; Quick Start Guide - 1; Power Cord - 5 |
