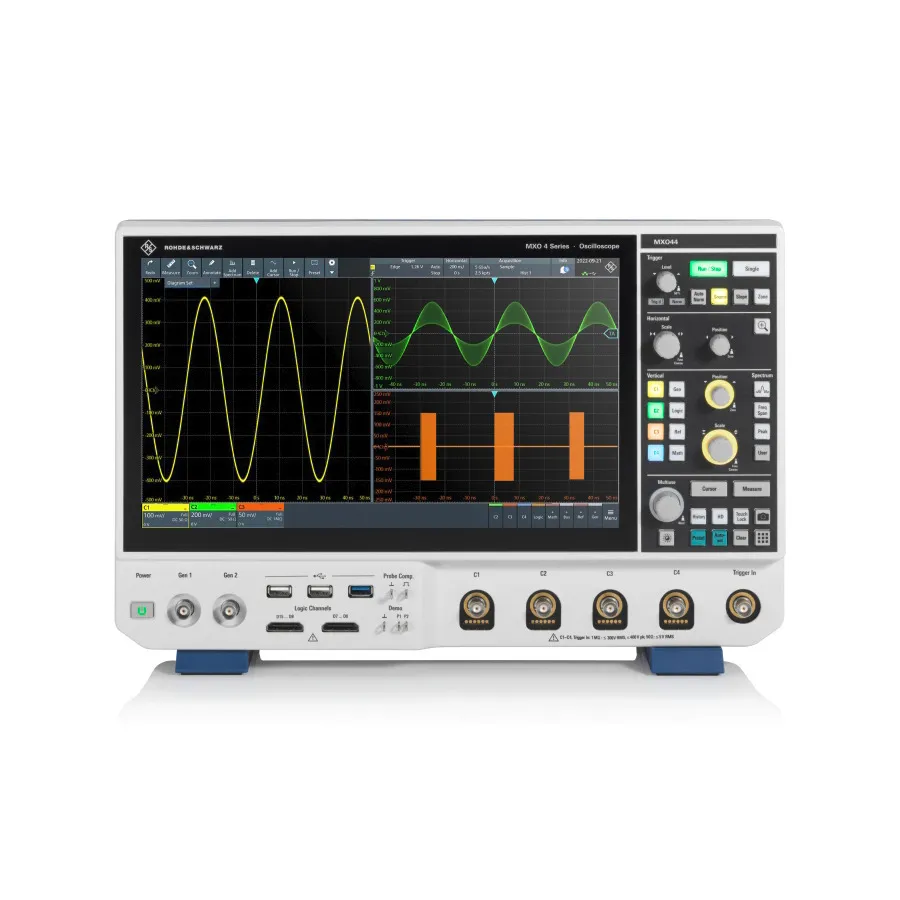

Rohde & Schwarz MXO44-PRO Digital Oscilloscope Bundle

Overview

The Rohde & Schwarz MXO44-PRO is a professional oscilloscope bundle designed for automotive and aerospace test engineers. It combines the MXO44 4-channel digital oscilloscope upgraded to 500MHz bandwidth with comprehensive protocol analysis including automotive standards (CAN, CAN-FD, LIN, SENT), aerospace protocols (ARINC-429, MIL-STD-1553, SpaceWire), MIPI interfaces, automotive Ethernet, and general-purpose serial buses. This bundle includes arbitrary waveform generation, power analysis, and frequency response analysis.

Key Features

• 500MHz bandwidth with 5GS/s sample rate and 400Mpts standard memory
• 12-bit ADC at all sample rates with 18-bit HD architecture
• Arbitrary Waveform Generator (MXO4-B6) for test signal synthesis
• Comprehensive Automotive Protocol Support: CAN, CAN-FD, CAN-XL, LIN, SENT, Automotive Ethernet
• Aerospace Protocols: ARINC-429, MIL-STD-1553, SpaceWire
• Low-Speed Serial Buses: I2C, SPI, UART/RS-232, RS-422/RS-485, Quad-SPI
• MIPI Low-Speed Protocols: SPMI, RFFE, I3C
• Power Analysis (MXO4-K31) and Frequency Response Analysis (MXO4-K36)
• World's fastest update rate: exceeding 4.5 million acquisitions per second
• 13.3-inch Full HD capacitive touchscreen

Applications

• Automotive system development and testing (CAN, LIN, Ethernet)
• Aerospace and defense applications with protocol-specific analysis
• Multi-protocol bus debugging and validation
• Power consumption and efficiency analysis
• Complex system integration testing

Included Accessories

• 700 MHz Passive Probe (10:1) — one per channel
• Accessories Bag
• Quick Start Guide
• Power Cord
