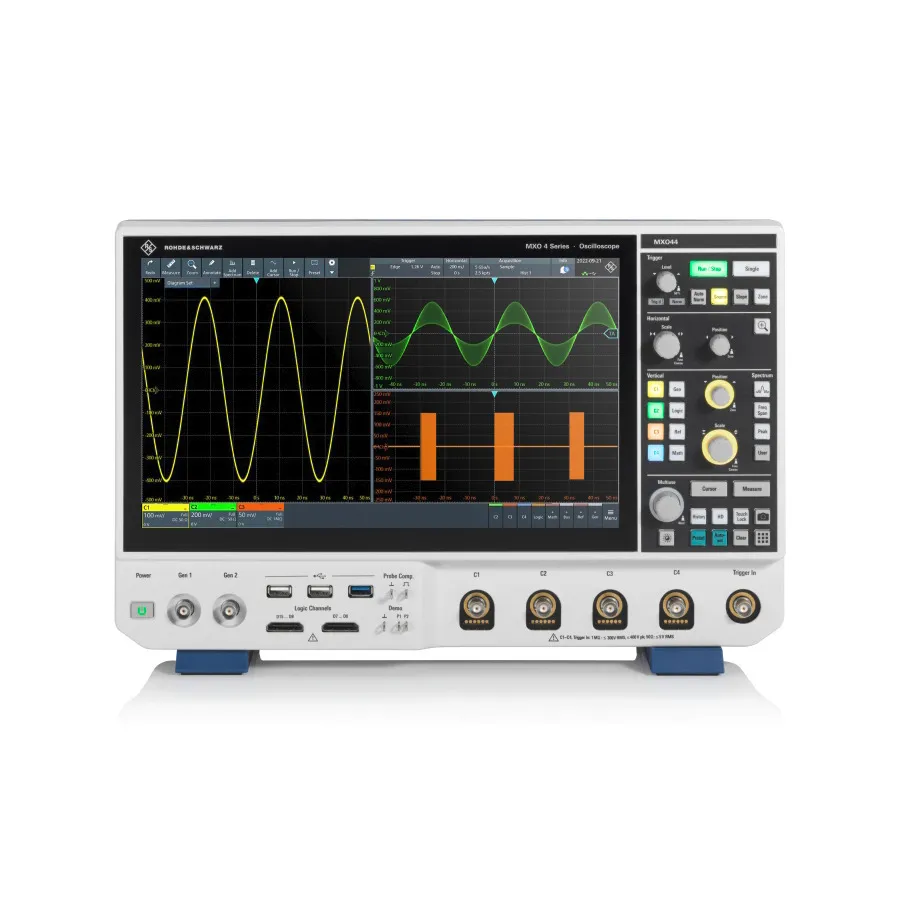

Rohde & Schwarz MXO44-BNDL Digital Oscilloscope Bundle

Overview

The Rohde & Schwarz MXO44-BNDL is a comprehensive oscilloscope bundle that brings together the MXO44 4-channel digital oscilloscope with premium upgrades and advanced analysis options. This bundle features 1.5GHz bandwidth, 800Mpts memory, and includes an arbitrary waveform generator, jitter analysis, power analysis, frequency response analysis, and extensive serial bus protocol support (I2C, SPI, UART, CAN, ARINC-429, SPMI, and 10BASE-T1S). It represents a complete solution for professional test and measurement applications.

Key Features

• 1.5GHz bandwidth with 5GS/s sample rate (top-tier configuration)
• 800Mpts memory (interleaved 2 channels) enabling extended acquisition windows
• 12-bit ADC at all sample rates with 18-bit HD architecture
• Arbitrary Waveform Generator (MXO4-B6) for signal synthesis
• Jitter Analysis (MXO4-K12) for precise timing measurements
• Power Analysis (MXO4-K31) for efficiency and quality assessment
• Frequency Response Analysis (MXO4-K36)
• Multi-protocol Serial Bus Analysis: I2C, SPI, UART/RS-232, CAN/CAN-FD, ARINC-429, SPMI, 10BASE-T1S
• Update rate exceeding 4.5 million acquisitions per second
• 13.3-inch Full HD capacitive touchscreen

Applications

• Advanced signal measurement and analysis in development labs
• Multi-protocol debugging for automotive and aerospace systems
• Power efficiency and jitter characterization
• Comprehensive system validation and troubleshooting

Included Accessories

• 700 MHz Passive Probe (10:1) — one per channel
• Accessories Bag
• Quick Start Guide
• Power Cord
