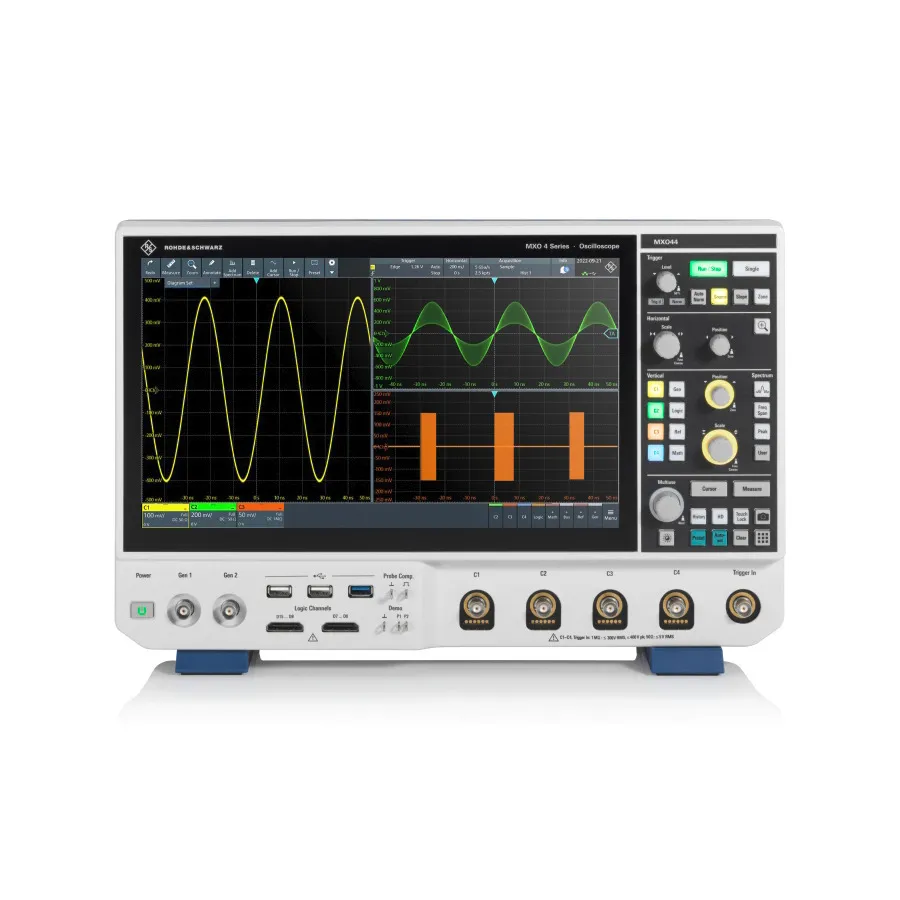

Rohde & Schwarz MXO44-BASC Digital Oscilloscope Bundle

Overview

The Rohde & Schwarz MXO44-BASC is a bundle featuring the MXO44 4-channel digital oscilloscope paired with the MXO4-B6 Arbitrary Waveform Generator. This combination provides both signal analysis and waveform generation capabilities in a single integrated solution. The MXO44 delivers 200MHz bandwidth, 5GS/s sample rate, and 400Mpts memory with 12-bit ADC resolution, making it ideal for comprehensive testing and development workflows.

Key Features

• MXO44 oscilloscope: 200MHz bandwidth, 5GS/s sample rate, 400Mpts standard memory
• 12-bit ADC at all sample rates with optional 18-bit HD architecture
• MXO4-B6 Arbitrary Waveform Generator for signal synthesis
• World's fastest real-time update rate: exceeding 4.5 million acquisitions per second
• True vertical scaling down to 500 µV/div with ±5 V offset range
• High-precision digital trigger with 0.00001 vertical divisions sensitivity
• Industry-leading spectrum analysis: 45,000 FFT/s update rate
• 13.3-inch Full HD capacitive touchscreen
• Upgradeable: optional bandwidth, MSO, memory extensions, and protocol analysis modules available

Applications

• Combined signal acquisition and waveform generation testing
• Electronic circuit development and validation
• RF and analog signal analysis
• Educational and laboratory use

Included Accessories

• 700 MHz Passive Probe (10:1) — one per channel
• Accessories Bag
• Quick Start Guide
• Power Cord
