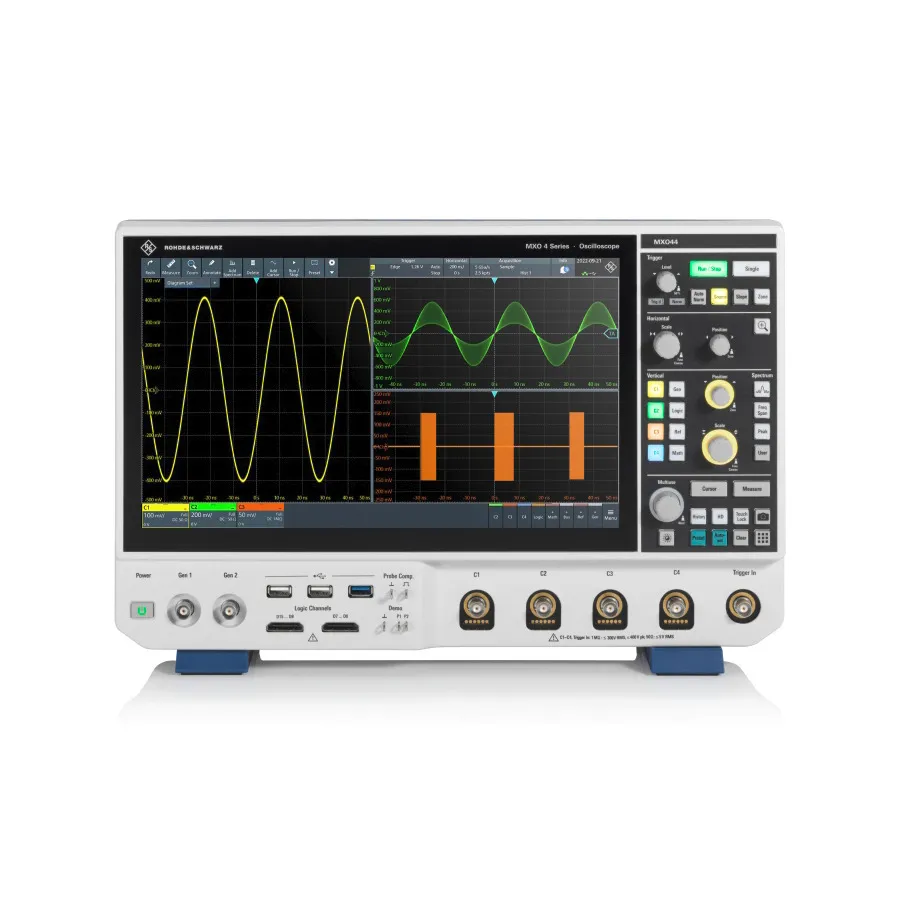

Rohde & Schwarz MXO44 Digital Oscilloscope

Overview

The Rohde & Schwarz MXO44 is a 4-channel digital oscilloscope that represents the first generation of the MXO 4 series, delivering exceptional performance and value. With a 200MHz bandwidth and 5GS/s sample rate, it provides fast real-time signal acquisition for development engineers and test professionals. The instrument features a 12-bit ADC with 400Mpts of standard memory on all four channels, offering 16 times the vertical resolution of traditional 8-bit oscilloscopes and up to 100 times the standard memory of comparable instruments.

Key Features

• 200MHz bandwidth (upgradeable to 1.5GHz)
• 5GS/s sample rate with 400Mpts standard memory (all four channels simultaneously)
• 12-bit ADC at all sample rates with optional 18-bit HD architecture
• World's fastest real-time update rate: exceeding 4.5 million acquisitions per second
• True vertical scaling down to 500 µV/div with ±5 V offset range
• High-precision digital trigger: 0.00001 vertical divisions sensitivity, 1 ps jitter, <21 ns rearm time
• Industry-leading spectrum analysis: 45,000 FFT/s update rate
• 13.3-inch Full HD capacitive touchscreen with intuitive user interface
• Adjustable trigger filters and user-selectable hysteresis
• Available with optional upgrades: MSO, arbitrary waveform generator, memory extensions, serial bus analysis

Applications

• General-purpose digital measurement and signal analysis
• Development and debugging of electronic circuits and devices
• RF and spectrum analysis
• Timing and jitter measurements
• Power quality and efficiency analysis with optional application bundle

Included Accessories

• 700 MHz Passive Probe (10:1) — one per channel
• Accessories Bag
• Quick Start Guide
• Power Cord
