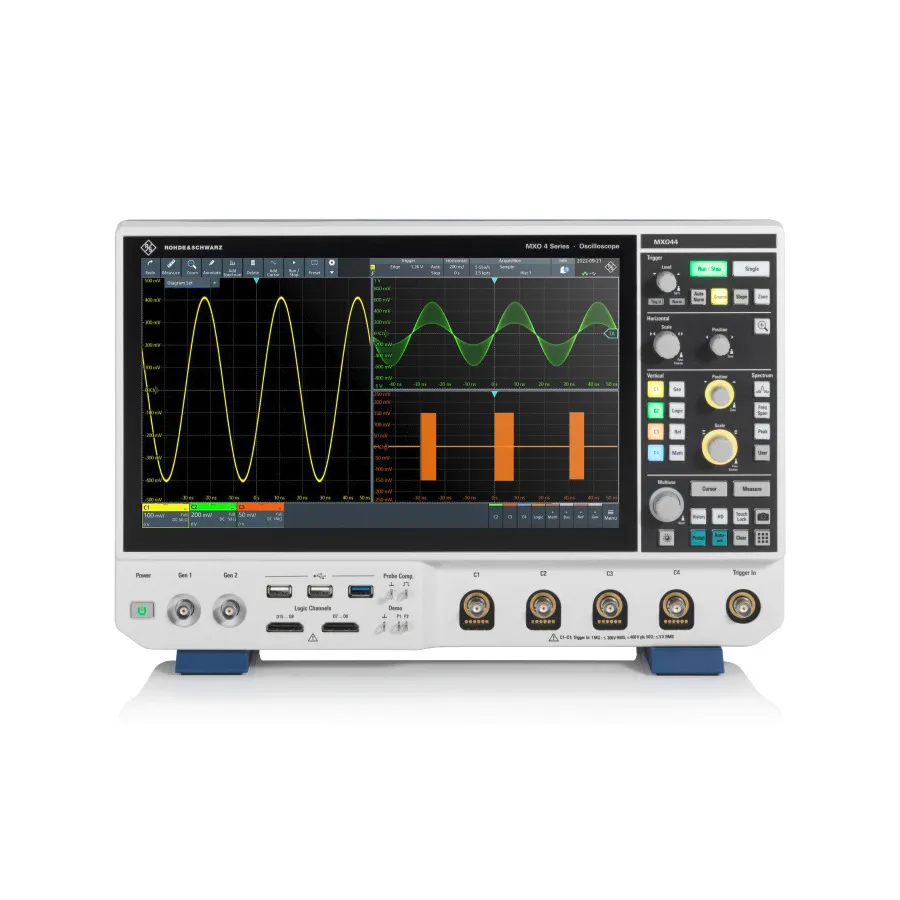

Rohde & Schwarz MXO4-BNDL 4-Channel Digital Oscilloscope Bundle

Overview

The MXO4-BNDL is a comprehensive four-channel digital oscilloscope bundle from Rohde & Schwarz. It combines the MXO44 oscilloscope with 1.5 GHz bandwidth with the RTA-PK1 application suite, providing 400 Mpts standard memory, 5 GS/s real-time sampling, and integrated tools for signal analysis, protocol decoding, and arbitrary waveform generation.

Key Features

• 4-channel oscilloscope with 1.5 GHz bandwidth
• 5 GS/s real-time sample rate
• 400 Mpts standard acquisition memory on all four channels
• 12-bit ADC at all sample rates with 18-bit architecture
• 13.3-inch Full HD capacitive touchscreen
• Acquisition rate exceeding 4.5 million waveforms per second
• Trigger sensitivity: 0.00001 vertical divisions with 1 ps jitter
• Trigger rearm time under 21 ns
• FFT spectrum analysis rate of 45,000 updates per second

Included Application Options

• R&S MXO 4 -K510: Low speed serial bus triggering and decode (I2C, SPI, RS232, UART)
• R&S MXO 4 -K520: Automotive serial bus triggering and decode
• R&S MXO 4 -K36: Frequency response analysis (Bode, PSRR, Impedance)
• R&S MXO 4 -B6: Integrated arbitrary waveform generator (2-channel, 100 MHz)

Included Accessories

• 700 MHz passive probe (10:1) — one per channel
• Accessories bag
• Quick start guide
• Power cord

Applications

• General-purpose oscilloscopy and signal analysis
• Serial bus protocol analysis and debugging
• Automotive electronics testing
• Frequency response characterization
• Prototype hardware development with integrated arbitrary waveform generation
