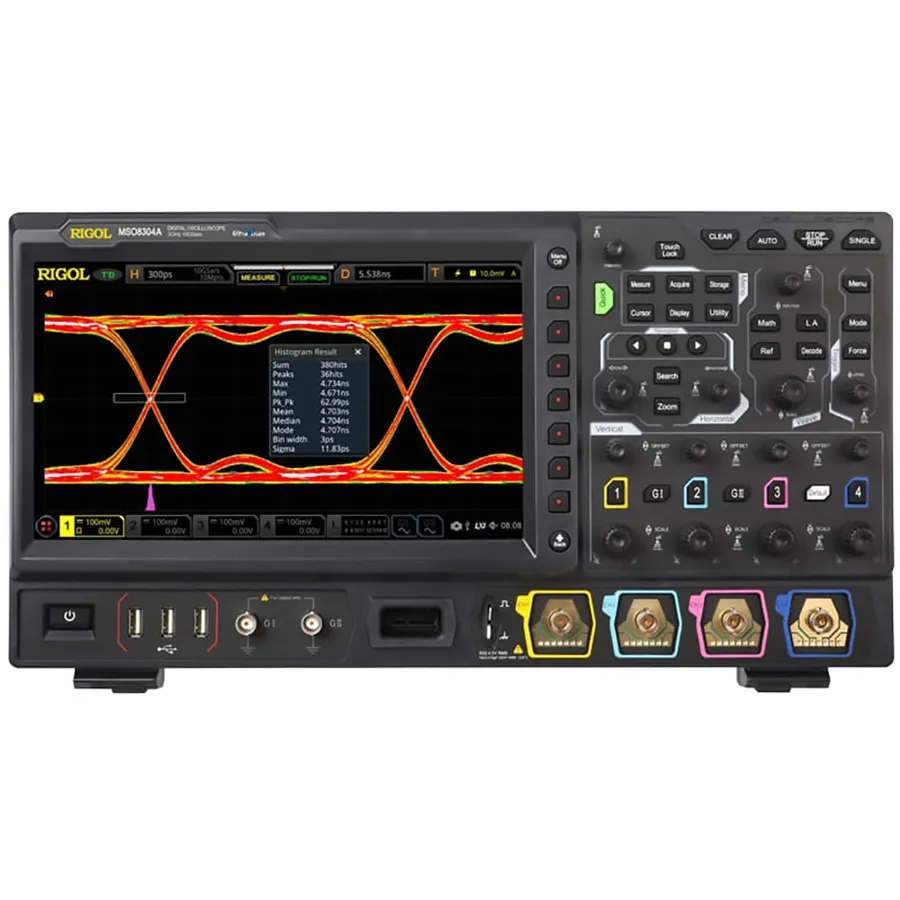

RIGOL MSO8204A Mixed Signal Oscilloscope
Request a quote
RIGOL MSO8204A is a 2 GHz mixed signal oscilloscope with 4 analog, 16 digital channels, 10 GSa/s sample rate, and 500 Mpts memory, upgradeable via software.
Product details
| Model | MSO8204A |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL MSO8204A is an upgraded mixed signal oscilloscope in the MSO8000A series, based on RIGOL's proprietary ASIC chip and UltraVision II platform. Integrating 7 independent instruments into one compact device, it delivers high performance for design verification, troubleshooting, and analysis with software-upgradeable functionality.
Key Features
- 2 GHz analog bandwidth
- 4 analog channels plus 16 digital channels (logic probe optional)
- 10 GSa/s real-time sample rate
- Up to 500 Mpts standard memory depth
- High waveform capture rate exceeding 600,000 waveforms per second
- 7 integrated instruments: oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, and protocol analyzer
- 10.1-inch capacitive multi-touch screen with gesture support
- Software-upgradeable through keycode licensing
- Real-time eye diagram and jitter analysis (optional)
- Built-in advanced power analysis software (optional)
Applications
- Electronic circuit design and validation
- Mixed signal troubleshooting and diagnostics
- Power and signal integrity testing
- Protocol and serial bus analysis
- Development and research environments
Specifications
| Bandwidth | 2 GHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 10 GS/s |
| Memory | 500 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 10.1 Capacitive Color Touch |
| Series | MSO8000A Series |
| Includes | USB cable, (4x) passive high-impedance probes (500 MHz) (RP3500A), (2x) passive low-impedance probes (1.5 GHz) (RP6150A), Front panel cover (MSO8000-FPC), Quick guide (hard copy) |
