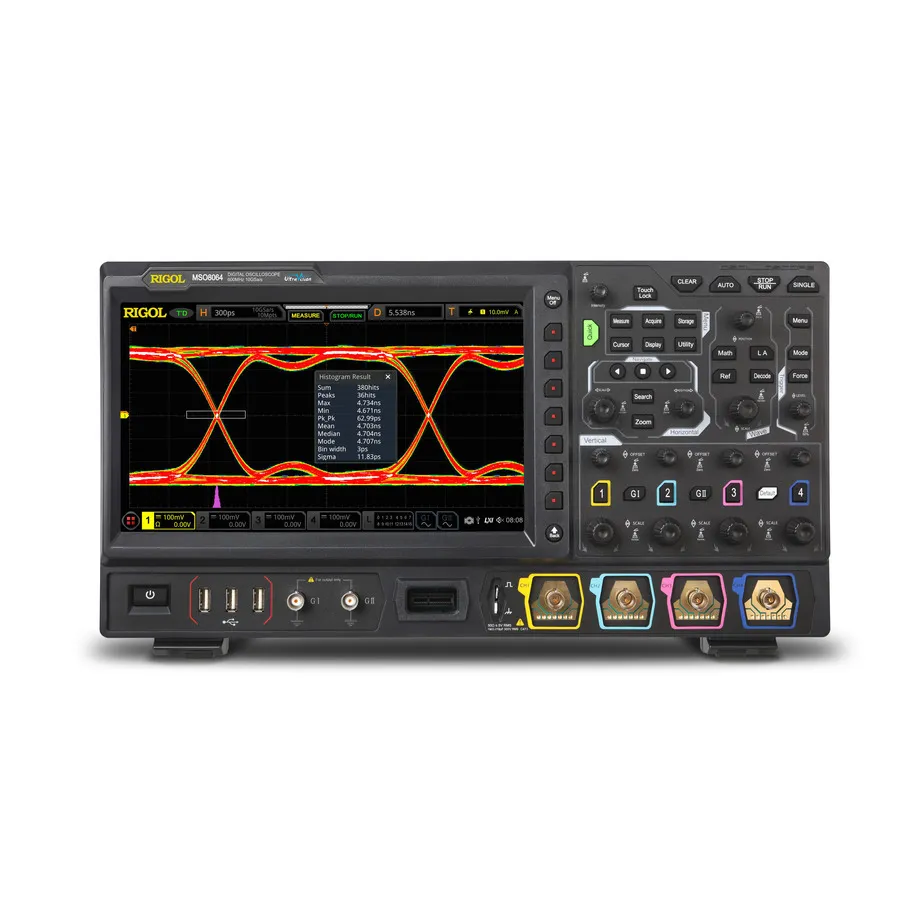

RIGOL MSO8064 Mixed Signal Oscilloscope
Request a quote
RIGOL MSO8064 is a 4-channel mixed signal oscilloscope with 600 MHz bandwidth, 10 GS/s sample rate, and 500 Mpts memory depth.
Product details
| Model | MSO8064 |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL MSO8064 is a mid-to-high-end mixed signal digital oscilloscope built on RIGOL's proprietary ASIC chip and UltraVision II platform. It integrates 7 independent instruments including digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, digital voltmeter, 6-digit frequency counter, and protocol analyzer. The MSO8064 delivers 600 MHz analog bandwidth and an exceptionally high waveform capture rate exceeding 600,000 waveforms per second.
Key Features
- 600 MHz analog bandwidth in single-channel and half-channel modes
- 4 analog channels plus 1 external trigger channel
- 16 digital channels (logic probe required)
- 10 GS/s real-time sample rate
- 500 Mpts memory depth
- Over 600,000 waveforms per second capture rate
- 450,000 frames hardware real-time recording and playback
- 41 automated waveform parameter measurements with full-memory capability
- Math operations, enhanced FFT analysis, and peak search functions
- Waveform histogram analysis and eye diagram support
- 10.1-inch capacitive multi-touch display with 256-level intensity grading
- Multiple connectivity: USB HOST/DEVICE, LAN (LXI), HDMI, TRIG OUT, USB-GPIB
- Web control and online version upgrade capability
Applications
- General-purpose mixed signal circuit testing and debugging
- Digital and analog signal analysis
- Power integrity measurements with optional power analysis software
- Eye diagram and jitter analysis for high-speed designs
- Protocol analysis and reverse engineering
Specifications
| Bandwidth | 600 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 10 GS/s |
| Memory | 500 Mpts |
| Type | MSO |
| Vertical Resolution | 12 bit |
| Display Type | 10.1 Capacitive Color Touch |
| Series | MSO8000 Series |
