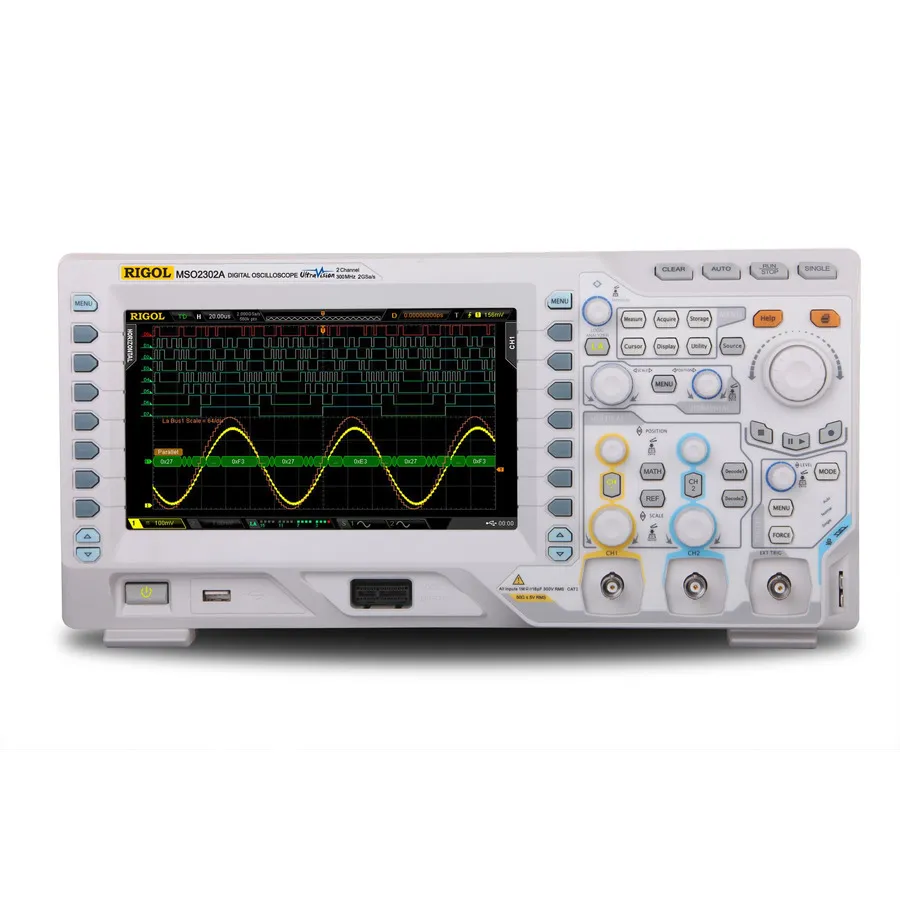

RIGOL MSO2302A Mixed Signal Oscilloscope

Overview

The RIGOL MSO2302A is a digital oscilloscope from the 2000A Series, offering best-in-class features and value. It provides advanced triggering, large 8-inch display, and comprehensive decoding capabilities designed for bench-top and field applications. With innovative UltraVision technology and extended waveform recording, it delivers exceptional performance for analyzing higher-speed signals.

Key Features

• 300MHz bandwidth with standard 50Ω input impedance
• 2 analog channels and 16 digital channels for mixed signal analysis
• 2 GSa/s real-time sample rate (analog channels), 1 GSa/s (digital channels)
• 14 Mpts standard memory depth (upgradeable to 56 Mpts for analog, 28 Mpts for digital)
• 52,000 waveforms per second capture rate
• 256-level intensity grading for waveform display clarity
• 65,000 frames hardware real-time waveform recording, playback, and analysis
• 8-inch TFT WVGA display (800x480)
• Lower noise floor with wide vertical range: 500µV/div to 10V/div
• Advanced trigger options and parallel, RS232, I2C, SPI, and CAN bus decoding
• RPL2316 digital probe kit included for 16-channel logic analysis
• Complete connectivity: USB Host/Device, LAN (LXI), AUX, optional USB-GPIB
• Supports remote control and SCPI programming

Applications

• Digital circuit analysis and debugging
• Serial protocol decode and validation (RS232, I2C, SPI, CAN)
• Signal integrity measurements and analysis
• Automotive electronics testing
• Consumer electronics development and troubleshooting
• Educational laboratory measurements
• Field maintenance and on-site diagnostics

Included Accessories

• RPL2316 digital probe kit (for 16-channel logic analysis)
• Power cord
• USB cables and connectivity accessories
