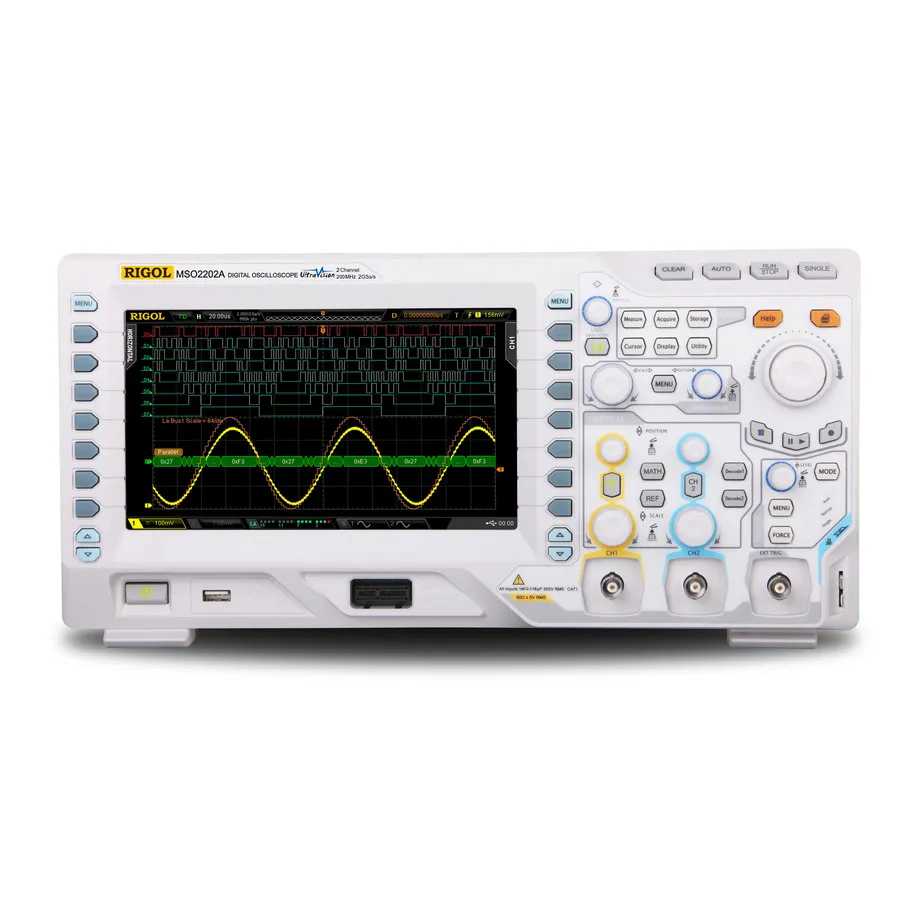

RIGOL MSO2202A Mixed Signal Oscilloscope
Request a quote
RIGOL MSO2202A is a 200MHz mixed signal oscilloscope with 2 analog and 16 digital channels, 2GSa/s sampling, 14Mpts memory, UltraVision display, and integrated 25MHz signal generator.
Product details
| Model | MSO2202A |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL MSO2202A is a versatile 200MHz mixed signal oscilloscope from RIGOL's MSO2000A Series. Designed for bench-top and field applications, it combines advanced triggering and bus decoding features with an 8-inch WVGA display and ultra-low noise floor to capture and analyze both analog and digital signals with precision.
Key Features
- 200MHz bandwidth with standard 50Ω input impedance
- 2 analog channels and 16 digital channels with included RPL2316 probe kit
- 2GSa/s analog sample rate, 1GSa/s digital sample rate
- 14Mpts standard memory depth (up to 56Mpts optional)
- Ultra-low noise floor with wide vertical range (500µV/div to 10V/div)
- Innovative UltraVision display technology
- High waveform capture rate of 52,000 wfms/s
- 256-level intensity grading waveform display
- 65,000 frames hardware real-time waveform recording and playback
- Multiple trigger modes and bus decoding (Parallel, RS232, I2C, SPI, CAN)
- 8-inch TFT WVGA display (800x480)
- Complete connectivity: USB Host/Device, LAN (LXI), AUX
Applications
- Embedded systems and microcontroller development
- Serial protocol debugging and analysis
- Video signal testing and measurement
- Educational use and bench testing
- Field service and troubleshooting
- Circuit design and validation
Specifications
| Bandwidth | 200 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sampling Rate | 2 GS/s |
| Memory | 14 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8 TFT WVGA |
| Series | MSO2000A Series |
