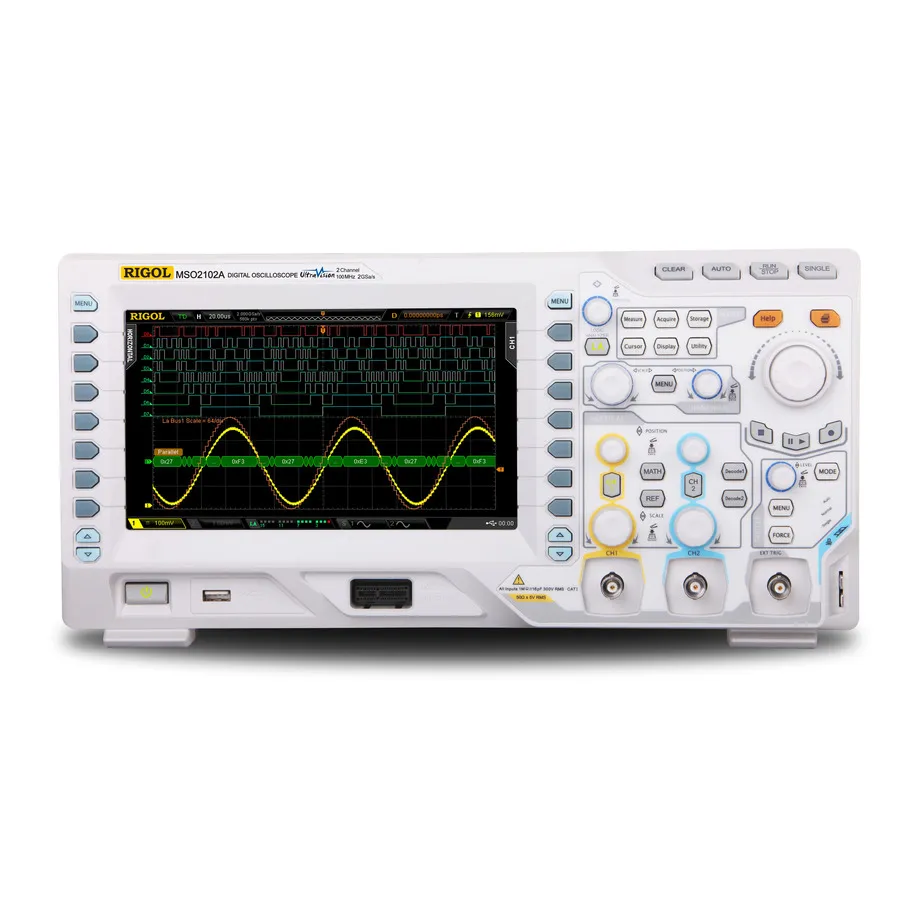

RIGOL MSO2102A-S Mixed Signal Oscilloscope

Overview

The RIGOL MSO2102A-S is a mixed signal oscilloscope designed for professionals in electronics, telecommunications, automotive, and industrial applications. It combines 2 analog channels with 16 digital logic channels, making it ideal for debugging complex embedded systems and analyzing multi-signal interactions. The instrument features innovative UltraVision display technology and advanced triggering capabilities for capturing elusive signals.

With its compact form factor and user-friendly 8-inch WVGA display, the MSO2102A-S delivers professional-grade measurement capabilities at an accessible price point. The integrated 25 MHz dual-channel function generator adds signal generation capabilities directly to the oscilloscope.

Key Features

• Bandwidth up to 100 MHz with 50 Ω standard input impedance
• 2 analog channels and 16 digital channels for mixed signal analysis
• Lower noise floor with wide vertical range: 500 µV/div to 10 V/div
• Real-time sample rate: 2 GSa/s analog, 1 GSa/s digital
• Memory depth: 14 Mpts analog (standard) / 56 Mpts (optional)
• Waveform capture rate up to 52,000 wfms/s with 256-level grayscale display
• Up to 65,000 frames hardware real-time waveform recording and playback
• Advanced trigger functions: edge, pulse width, video, and more
• Serial bus decoding: Parallel, RS232, I2C, SPI, CAN
• Built-in 25 MHz dual-channel function generator
• Complete connectivity: USB Host/Device, LAN (LXI), AUX, optional USB-GPIB

Applications

• Embedded systems debugging and development
• Mixed signal circuit analysis and troubleshooting
• Serial protocol analysis and decoding
• Power supply and switched-mode power supply testing
• Signal integrity analysis and timing measurements
