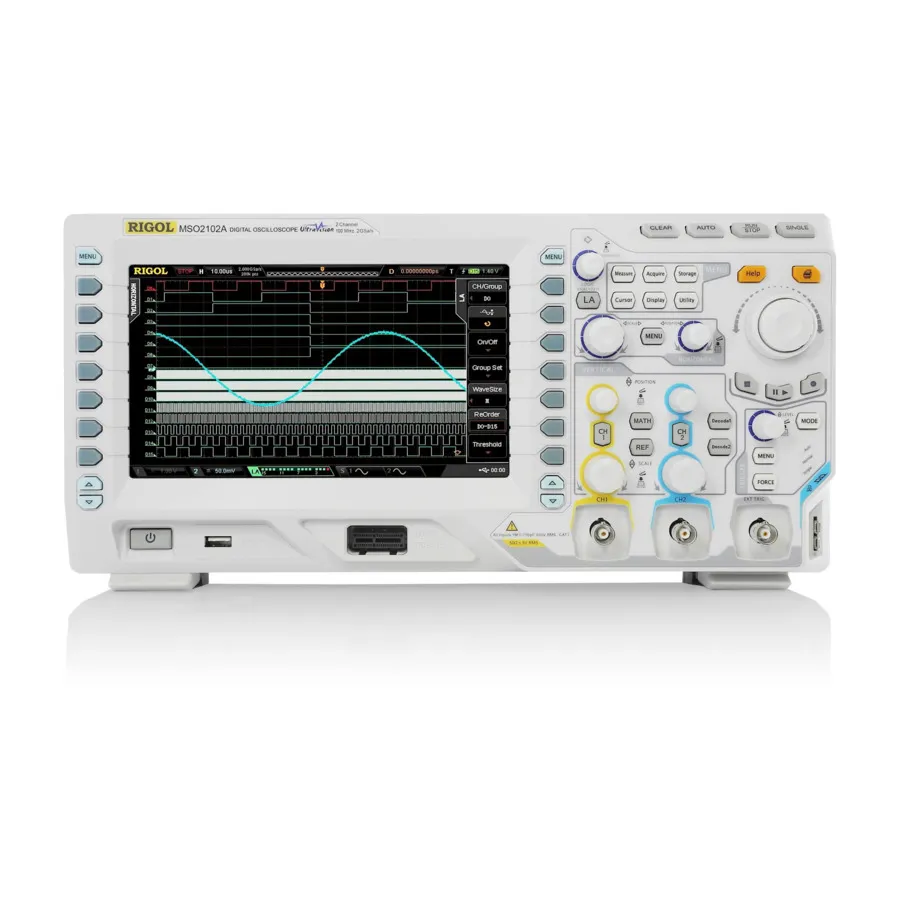

RIGOL MSO2102A Mixed Signal Oscilloscope

Overview

The RIGOL MSO2102A is a digital oscilloscope from the 2000A Series designed for bench-top and field applications. This mixed signal oscilloscope combines affordability with advanced features including 100 MHz bandwidth, 2 analog channels, and 16 digital channels. The 2000A Series delivers unmatched value with a low starting price while maintaining superior performance for analyzing higher-speed signals.

Key Features

• Bandwidth: 100 MHz (standard 50 Ω input)
• 2 analog channels, 16 digital channels
• Real-time sample rate: 2 GSa/s (analog), 1 GSa/s (digital)
• Memory depth: 14 Mpoints standard (56 Mpoints optional) for analog; 14 Mpoints standard (28 Mpoints optional) for digital
• Lower noise floor and wider vertical range: 500 μV/div to 10 V/div
• Innovative UltraVision technology
• Waveform capture rate: up to 52,000 waveforms/s
• Up to 256 levels intensity grading waveform display
• Hardware real-time waveform recording and playback: up to 65,000 frames
• Advanced trigger and bus decoding: Parallel, RS232, I2C, SPI, CAN
• 8-inch TFT WVGA display (800x480)
• Complete connectivity: USB Host, USB Device, LAN (LXI), Auxiliary, optional USB-GPIB

Applications

• Bench-top signal analysis
• Field service and maintenance
• Digital circuit debugging
• Mixed-signal testing and validation
• Communications and RF signal analysis
