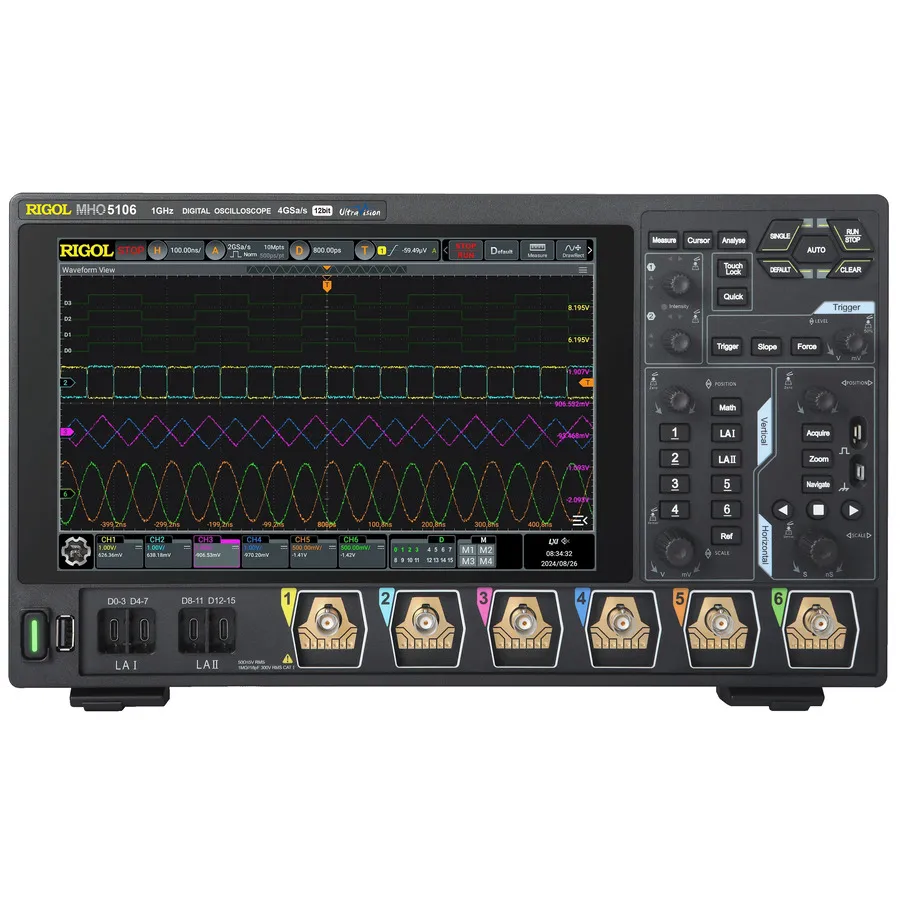

RIGOL MHO5106 Digital Oscilloscope

Overview

The RIGOL MHO5106 is a high-resolution digital oscilloscope from the MHO/DHO5000 series, built on RIGOL's Centaurus technical platform. It combines 12-bit resolution, 1 GHz bandwidth, and integrated logic analyzer capabilities for precise measurement and analysis of complex signals in design and test applications.

Key Features

• 12-bit vertical resolution for superior measurement accuracy
• 1 GHz analog bandwidth with up to 4 GS/s real-time sample rate
• 6 analog channels plus logic analyzer support (16 digital channels with optional probe)
• 500 Mpts maximum memory depth for capturing extended waveforms
• Vertical sensitivity to 100 μV/div for detecting weak signals
• 1,000,000 wfms/s waveform capture rate in fast recording mode
• Arbitrary Waveform/Function Generator, Bode plot, and protocol decoding
• 10.1" 1280×800 HD touch screen with 256-level intensity grading
• Flex knob and photoelectric encoder for improved usability
• Battery pack operation with online software upgrade support

Applications

• High-precision electronic design and debugging
• Complex signal analysis and measurement
• Mixed-signal embedded system testing
• Research and educational environments

Included Accessories

• Power Cord (destination country standard)
• USB Cable
• Passive HighZ Probe 500 MHz (RP3500A) per channel
