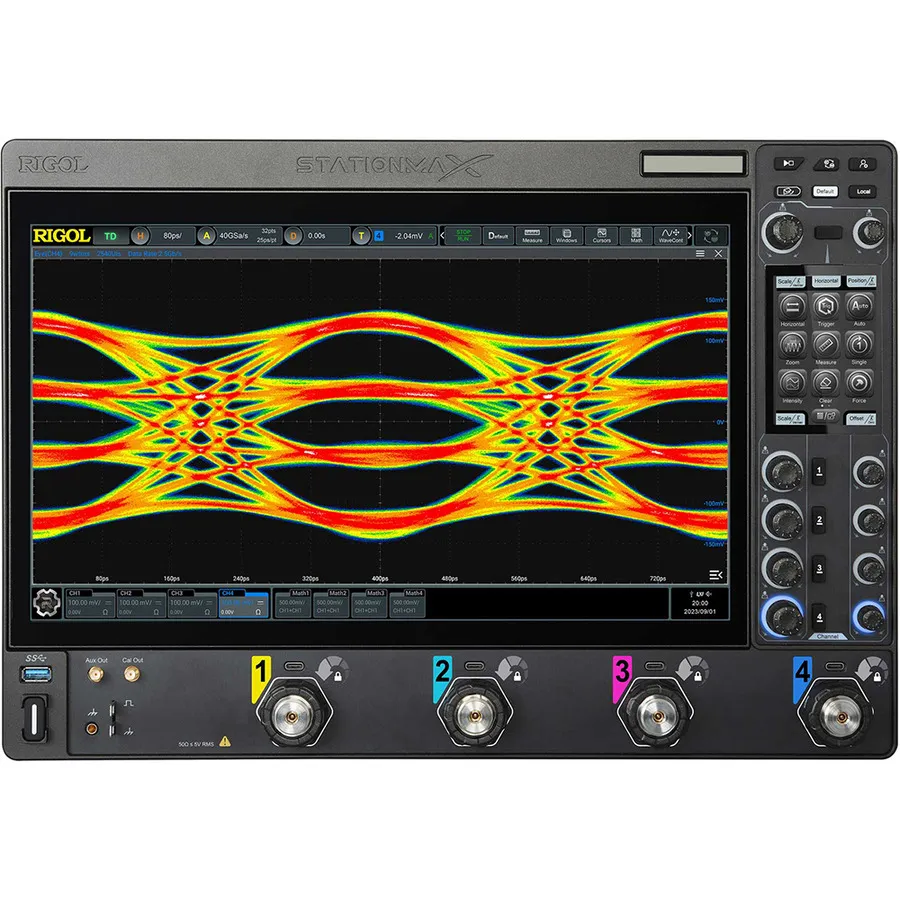

RIGOL DS80804 High-Resolution Digital Oscilloscope

Overview

The RIGOL DS80804 is a high-resolution 4-channel digital oscilloscope from the DS80000 series, designed for demanding high-speed analysis and protocol validation applications. With 8 GHz analog bandwidth, 40 GSa/s real-time sampling, and selectable 8-16 bit vertical resolution, it delivers superior signal fidelity. The DS80804 supports up to 4 Gpts of deep memory and comprehensive protocol compliance testing for PCIe, USB 2.0, and other high-speed standards, making it ideal for advanced digital system development and validation.

Key Features

• 4 analog channels with 8 GHz bandwidth across all channels
• 40 GSa/s real-time sampling simultaneously on all channels
• Selectable vertical resolution: 8 bits standard, up to 16 bits in High Resolution Mode
• Up to 4 Gpts maximum memory depth for comprehensive signal capture
• 250,000 waveforms per second capture rate
• StationMAX II hardware platform with UltraVision III architecture
• Comprehensive trigger options: Edge, Pulse, Slope, Video, Pattern, Duration, Window, Setup/Hold, and Nth Edge
• Protocol support: RS232/UART, I2C, SPI, CAN, CAN-FD, FlexRay, LIN, I2S, MIL-STD-1553, USB 2.0
• Advanced measurements: jitter analysis, real-time eye diagrams, signal integrity tools
• Record and playback up to 2,000,000 real-time waveform frames
• 15.6-inch touchscreen with electronic tilt and gesture recognition
• Interfaces: USB 3.0 (Host/Device), LAN (LXI), HDMI with Web Control

Applications

• PCIe and USB 2.0 compliance testing and protocol validation
• High-speed serial interface analysis and troubleshooting
• Signal integrity and timing characterization
• Embedded systems and digital circuit development
• Clock generation and PLL analysis
• Multi-protocol system verification and debugging

Included Accessories

• Calibration Certificate
• Power Cord
• USB Cable x1
• Precision BNC Adapter, 3.5 mm to BNC (50 Ω) x2
