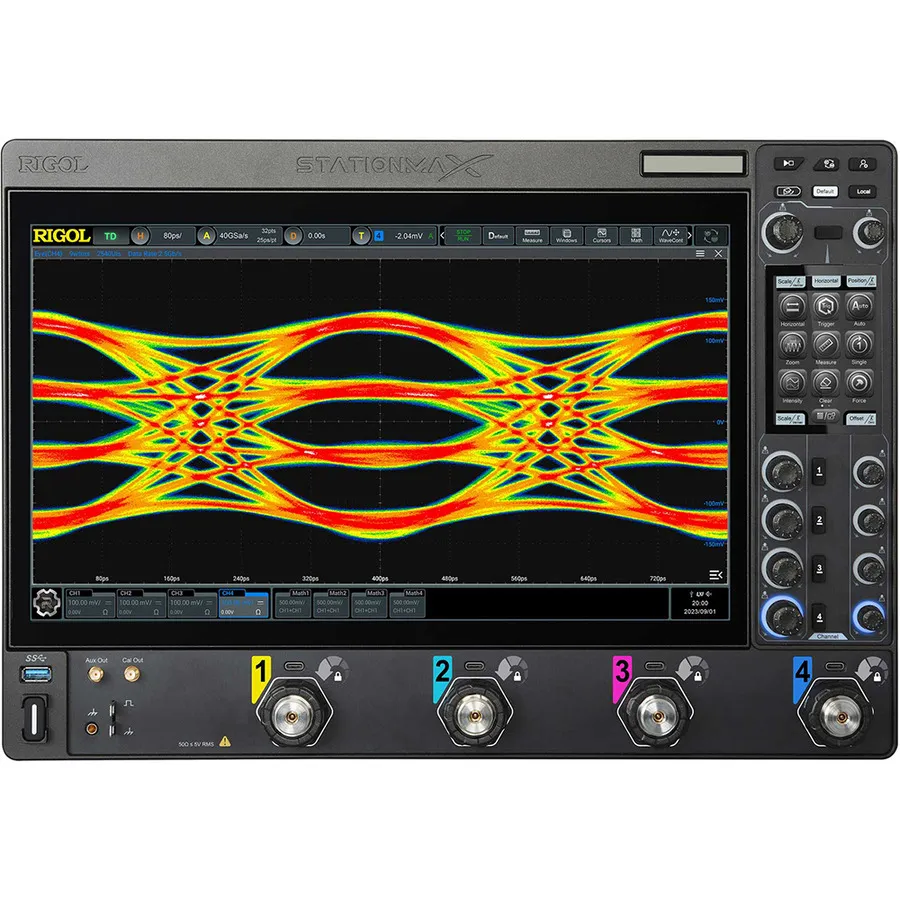

RIGOL DS80604 High-Resolution Digital Oscilloscope
RIGOL DS80604 delivers high-resolution 4-channel analysis up to 6 GHz with 40 GSa/s sampling, adjustable 8-16 bit resolution, and deep memory for protocol compliance testing.
Product details
| Model | DS80604 |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL DS80604 is a premium high-resolution 4-channel digital oscilloscope from the DS80000 series, engineered for advanced high-speed protocol analysis and signal integrity validation. Operating up to 6 GHz bandwidth with 40 GSa/s real-time sampling and selectable 8-16 bit vertical resolution, it captures signal details with exceptional clarity. With up to 4 Gpts of deep memory and support for comprehensive protocol compliance testing, the DS80604 is essential for engineers validating PCIe, USB 2.0, and other high-speed digital standards.
Key Features
- 4 analog channels with 6 GHz bandwidth on all channels
- 40 GSa/s real-time sampling on all channels simultaneously
- Selectable vertical resolution: 8 bits standard, up to 16 bits in High Resolution Mode
- Up to 4 Gpts maximum memory depth for capturing extended signal records
- 250,000 waveforms per second capture rate for real-time waveform tracking
- StationMAX II hardware platform with UltraVision III architecture
- Comprehensive trigger functions: Edge, Pulse, Slope, Video, Pattern, Duration, Window, Setup/Hold, and Nth Edge triggers
- Multiple protocol decodings: RS232/UART, I2C, SPI, CAN, CAN-FD, FlexRay, LIN, I2S, MIL-STD-1553, USB 2.0
- Advanced analysis: jitter measurement, real-time eye diagrams, signal integrity tools
- Recording and playback of up to 2,000,000 hardware real-time waveform frames
- 15.6-inch high-definition touch screen with electronic tilt adjustment and gesture support
- Multiple interfaces: USB 3.0 (Host and Device), LAN (LXI), HDMI, with Web Control support
Applications
- PCIe and USB 2.0 protocol compliance testing and validation
- High-speed serial bus analysis and debugging
- Embedded system signal integrity and timing analysis
- Clock source and PLL circuit characterization
- Parallel bus and multi-protocol development verification
- Research and development in communications and signal processing
Included Accessories
- Calibration Certificate
- Power Cord
- USB Cable x1
- Precision BNC Adapter, 3.5 mm to BNC (50 Ω) x2
Specifications
| Bandwidth | 6 GHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 40 GS/s |
| Memory | 500 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 15.6 HD Capacitive Color Touch |
| Series | DS80000 Series |
Request a quote
