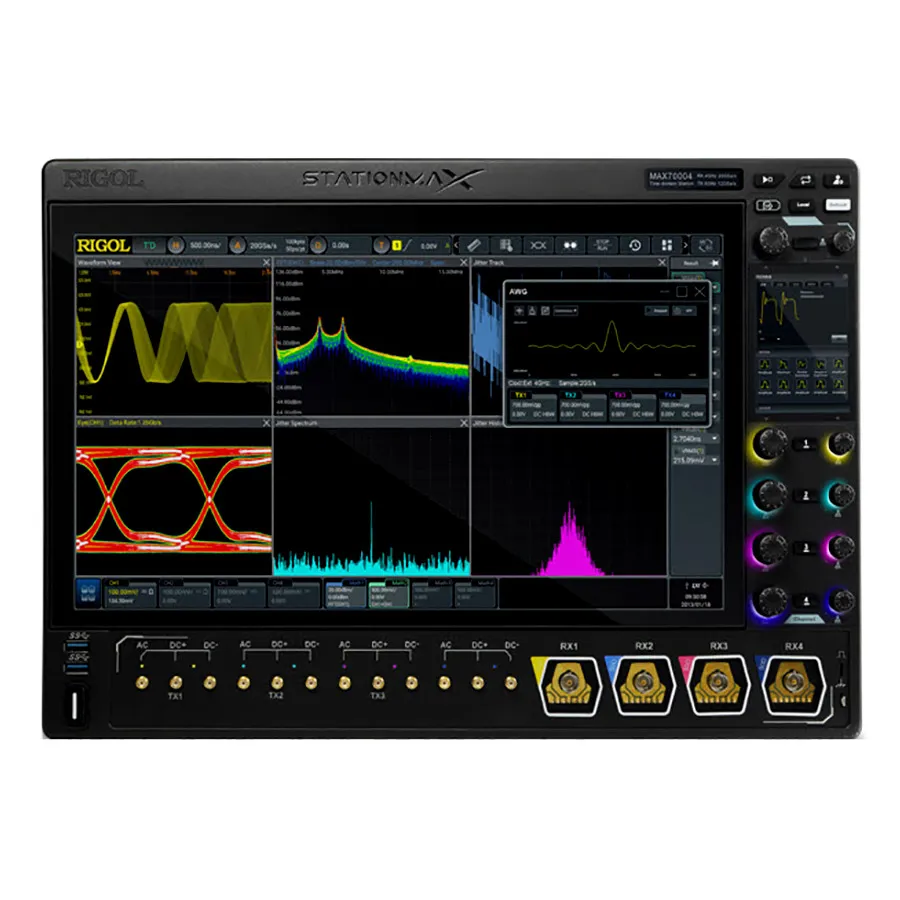

RIGOL DS70504 Digital Oscilloscope

Overview

The RIGOL DS70504 is a 5GHz, 4-channel digital oscilloscope from the DS70000 Series, designed for advanced RF and high-speed digital applications. This instrument integrates five independent measurement tools: digital oscilloscope, real-time spectrum analyzer, digital voltmeter, high-precision frequency counter, and protocol analyzer. It delivers comprehensive signal analysis capabilities for RF characterization and complex digital testing.

Key Features

• 5GHz analog bandwidth with 4 analog channels plus 1 external trigger channel
• 20 GSa/s real-time sampling rate with up to 2Gpts memory depth (with RL-20 option)
• 1,000,000+ waveforms per second capture rate with hardware real-time recording up to 2,000,000 frames
• Real-time spectrum analyzer (RTSA option) with up to 16Mpts FFT analysis
• Integrated protocol analyzer supporting RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553
• 15.6-inch HD capacitive multi-touch display with secondary 3.5-inch function menu screen
• 41 automatic waveform parameter measurements with full-memory hardware measurement
• Eye diagram and jitter analysis (JITTA option) for serial signal characterization
• High-end active differential probes available: PVA8350 (3.5GHz) and PVA8700 (7GHz)

Applications

• High-speed RF signal analysis and characterization
• Advanced digital circuit design and validation
• Serial protocol debugging with timing and jitter analysis
• Power analysis and measurement
• Pre-compliance testing for USB 2.0 and Ethernet (with optional modules)
• Eye diagram analysis for signal integrity assessment
