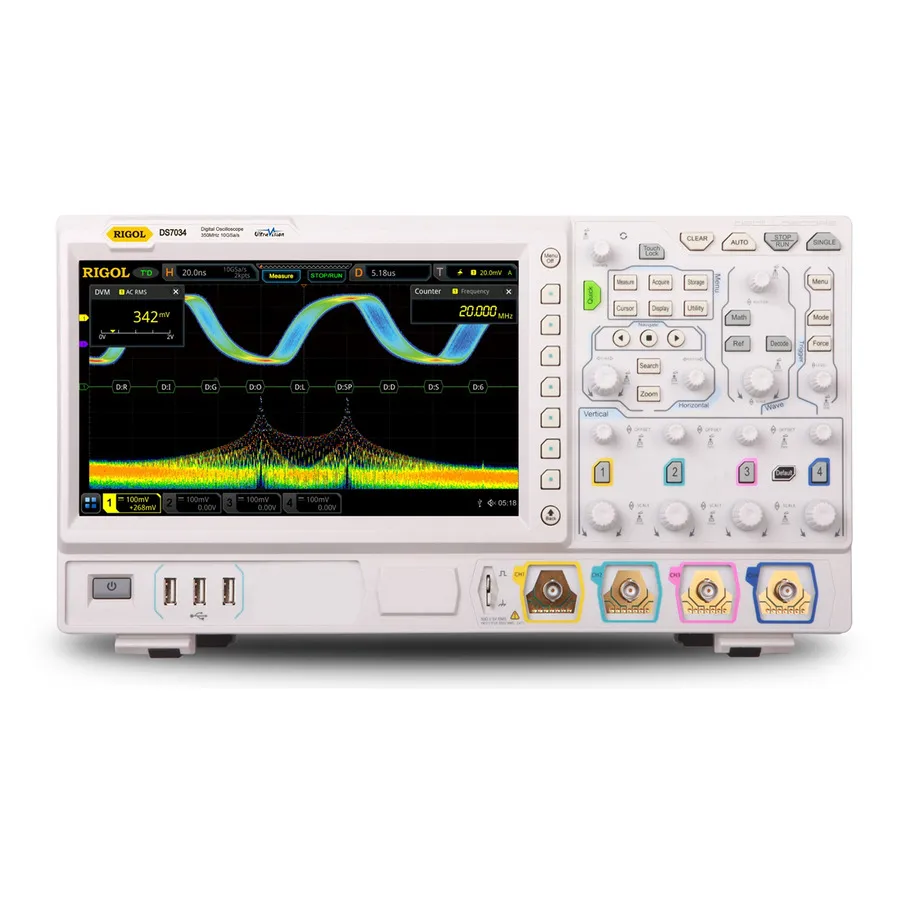

RIGOL DS7034 Digital Oscilloscope
Request a quote
RIGOL DS7034 is a 350MHz 4-channel digital oscilloscope with 10GS/s sampling rate, 500Mpts memory, and 7 integrated instruments including spectrum analyzer and protocol decoder.
Product details
| Model | DS7034 |
| Manufacturer | RIGOL |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The RIGOL DS7034 is a 350MHz, 4-channel digital oscilloscope from the DS7000 Series, designed for embedded design, power analysis, serial decode, and RF applications. This instrument integrates seven independent measurement tools: digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, frequency counter, and protocol analyzer for complete test coverage.
Key Features
- 350MHz analog bandwidth with 4 analog channels, 1 external trigger channel, and 16 optional digital channels
- 10 GSa/s real-time sampling rate with up to 500Mpts memory depth (optional)
- Over 600,000 waveforms per second capture rate with up to 450,000 frames hardware recording
- Integrated spectrum analyzer with enhanced FFT and peak search functions
- Protocol analyzer supporting RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553
- Auto measurement of 41 waveform parameters with full-memory hardware measurement
- 10.1-inch capacitive multi-touch display with 256-level color intensity grading and color persistence
- Multiple connectivity: USB HOST/DEVICE, LAN (LXI), HDMI, TRIG OUT, USB-GPIB, Web Control
Applications
- Embedded system design and debugging
- Power supply analysis and measurement
- Serial protocol analysis and timing measurement
- RF signal analysis and characterization
- Mixed-signal circuit validation with logic analysis
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | Upgrade Required |
| Sampling Rate | 10 GS/s |
| Memory | 500 Mpts |
| Type | DSO |
| Vertical Resolution | 8 bit |
| Display Type | 10.1 Capacitive Color Touch |
| Series | DS7000 Series |
