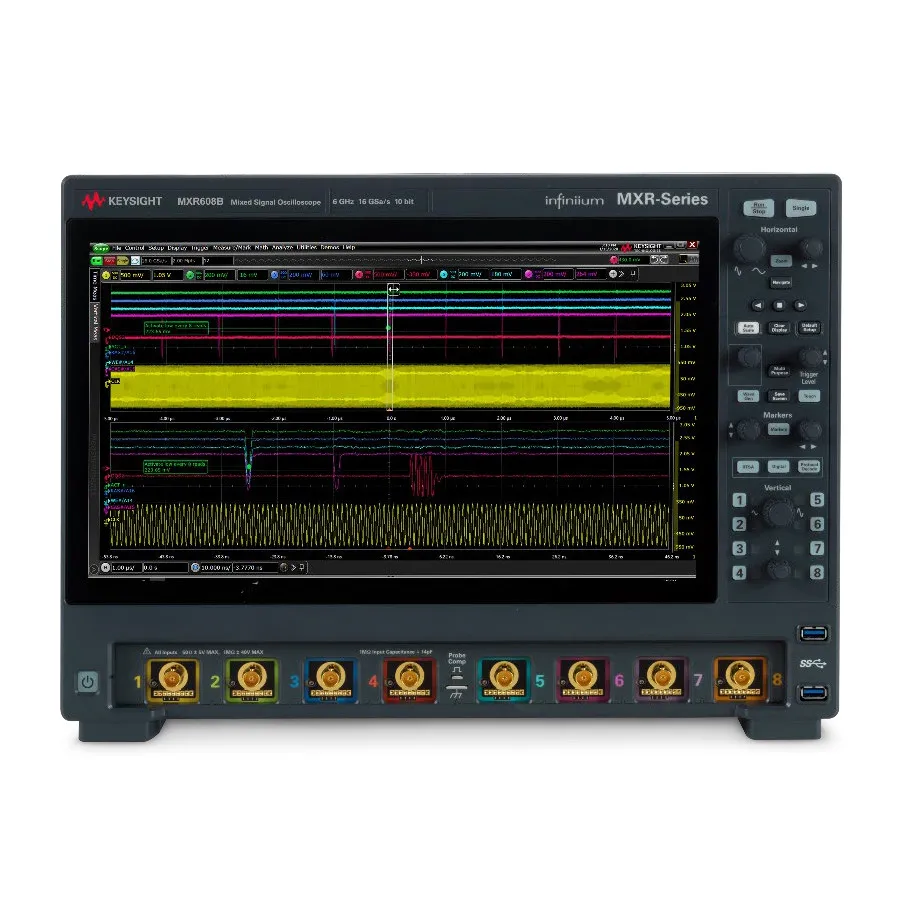

Keysight MXR608B Infiniium Real-Time Oscilloscope

Overview

The Keysight MXR608B is a real-time oscilloscope with eight analog channels, providing 6 GHz bandwidth and 16 GSa/s sample rate across all channels simultaneously. It combines high-speed signal acquisition with advanced analysis capabilities, offering uncompromised performance for complex signal measurements and debugging.

Key Features

• Eight analog channels with 6 GHz bandwidth and 16 GSa/s sample rate
• 10-bit ADC with up to 16 bits in high-resolution mode
• Low-noise front end with as low as 43 µV noise at 1 mV/div
• Intrinsic jitter as low as 118 fs
• 200 Mpts memory per channel, upgradeable to 400 Mpts or 1.6 Gpts
• 15.6-inch touch display with full HD resolution and dual screen support
• InfiniiScan advanced triggering for detecting signal integrity problems
• Integrated 8-in-1 tools: oscilloscope, logic analysis, real-time spectrum analysis, serial protocol analysis, waveform generator, frequency response analyzer, digital voltmeter, and counters
• History mode to review up to 1,024 previous trigger events
• Segmented memory for capturing and analyzing over 100,000 post-trigger events
• Fault Hunter automated analysis application for error detection and isolation

Applications

• High-speed digital circuit design and verification
• Signal integrity and eye diagram analysis
• RF and mixed-signal analysis
• Serial protocol debugging with automated analysis
• Frequency response characterization

Included Accessories

• Eight N2873A 500-MHz passive probes
• Probe accessory pouch
• BNC calibration cable
• Localized power cord
• Front panel hard cover
• Keyboard and mouse
• Keysight I/O libraries suite and documentation
