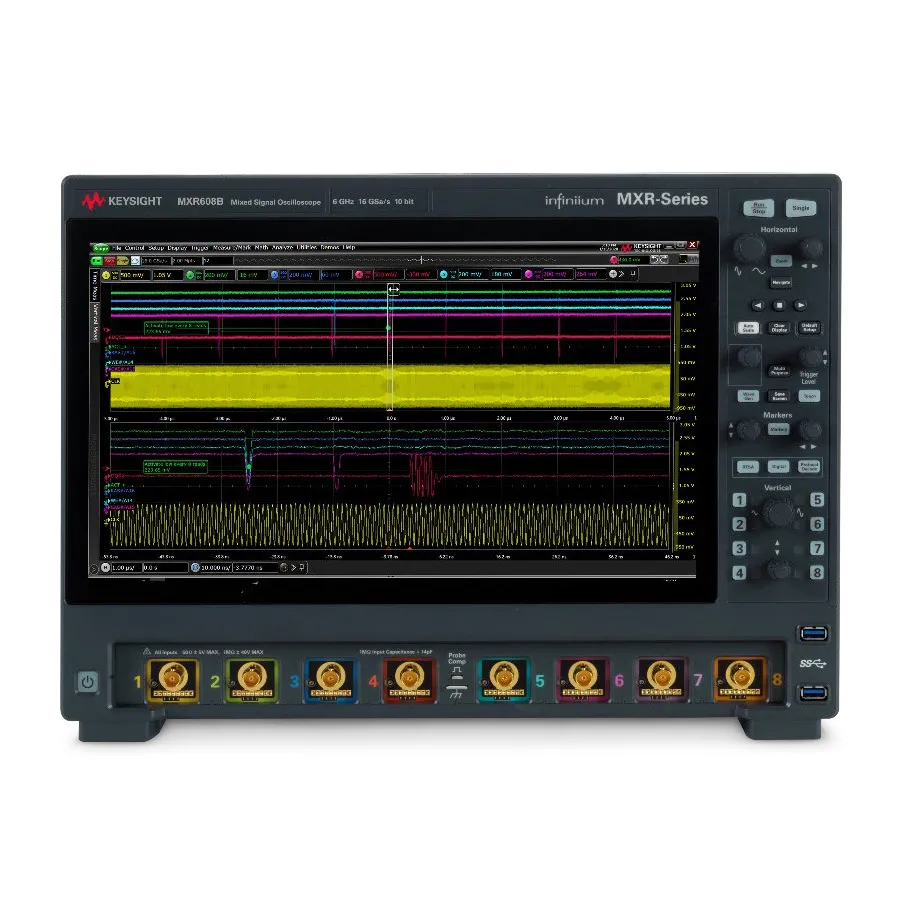

Keysight MXR258B Infiniium Real-Time Oscilloscope

Overview

The Keysight MXR258B Infiniium Real-Time Oscilloscope is an 8-channel precision measurement instrument designed for engineers and designers who require uncompromised performance. With 2.5 GHz bandwidth and 16 GS/s sample rate across all channels, it delivers exceptional signal fidelity for digital design verification, signal integrity analysis, and RF measurement applications. The scope features a low-noise front end, low intrinsic jitter (118 fs), and unprecedented timebase accuracy to ensure accurate capture and analysis of complex signals.

Key Features

• 8 analog channels with 2.5 GHz bandwidth and 16 GSa/s sample rate
• 10-bit ADC with up to 16 bits in high-resolution mode
• Standard memory: 200 Mpts per channel (upgradeable to 400 Mpts or 1.6 Gpts)
• Intrinsic jitter as low as 118 fs and noise as low as 43 µV (1 mV/div)
• 8-in-1 integrated tools: oscilloscope, logic analysis, real-time spectrum analysis, serial protocol analysis, waveform generator, frequency response analyzer, digital voltmeter, and counters
• Real-time spectrum analysis (RTSA) with up to 2 GHz analysis bandwidth
• Hardware-accelerated analysis with InfiniiScan Event Identification and Fault Hunter applications
• Zone triggering and segmented memory for capturing over 100,000 post-trigger events
• 15.6-inch full HD touchscreen with dual display support
• Fully upgradeable platform to future 6 GHz bandwidth

Applications

• High-speed digital signal verification and debugging
• Signal integrity analysis and jitter measurement
• RF and microwave signal analysis
• Serial protocol analysis and decoding
• Frequency response testing and characterization
• Automated fault detection and analysis in production testing

Included Accessories

• Eight N2873A 500-MHz passive probes (one per channel)
• Probe accessory pouch
• Localized power cord
• Front panel hard cover
• BNC calibration cable
• Keyboard and mouse
• Keysight I/O libraries suite, user guide, and programmer's guide
