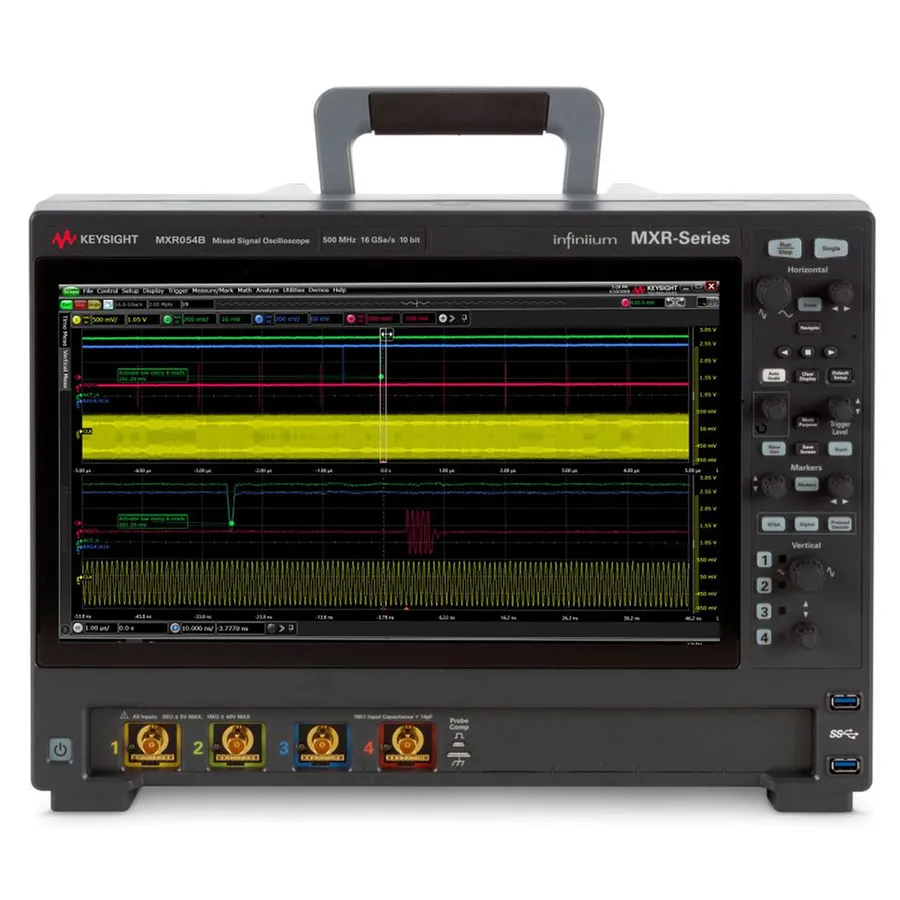

Keysight MXR054B Infiniium Real-Time Oscilloscope

Overview

The Keysight MXR054B Infiniium is a high-performance 4-channel real-time oscilloscope with 500 MHz bandwidth and 16 GSa/s sample rate. It combines low-noise front-end design with advanced automated analysis tools for design verification and signal debugging.

Key Features

• 4 analog channels with 500 MHz bandwidth
• 16 GSa/s sample rate with 200 Mpts standard memory (upgradeable to 1.6 Gpts)
• 10-bit ADC with up to 16 bits in high-resolution mode
• Intrinsic jitter: 118 fs
• Low-noise front end: 43 µV typical noise
• Timebase accuracy: 8 parts per billion
• 8-in-1 integrated tools: oscilloscope, logic analysis, real-time spectrum analysis, serial protocol analysis, waveform generator, frequency response analyzer, digital voltmeter, counters
• InfiniiScan advanced zone triggering
• Fault Hunter autonomous testing application
• History mode: review up to 1,024 previous trigger events
• 15.6-inch capacitive touch display, full HD

Applications

• High-speed digital signal verification
• Power electronics testing
• RF and mixed-signal measurement
• Serial protocol analysis and validation
• Automated device reliability testing

Included Accessories

• One N2873A 500-MHz passive probe per channel
• Probe accessory pouch
• Front panel hard cover
• BNC calibration cable
• Keyboard and mouse
• Localized power cord
