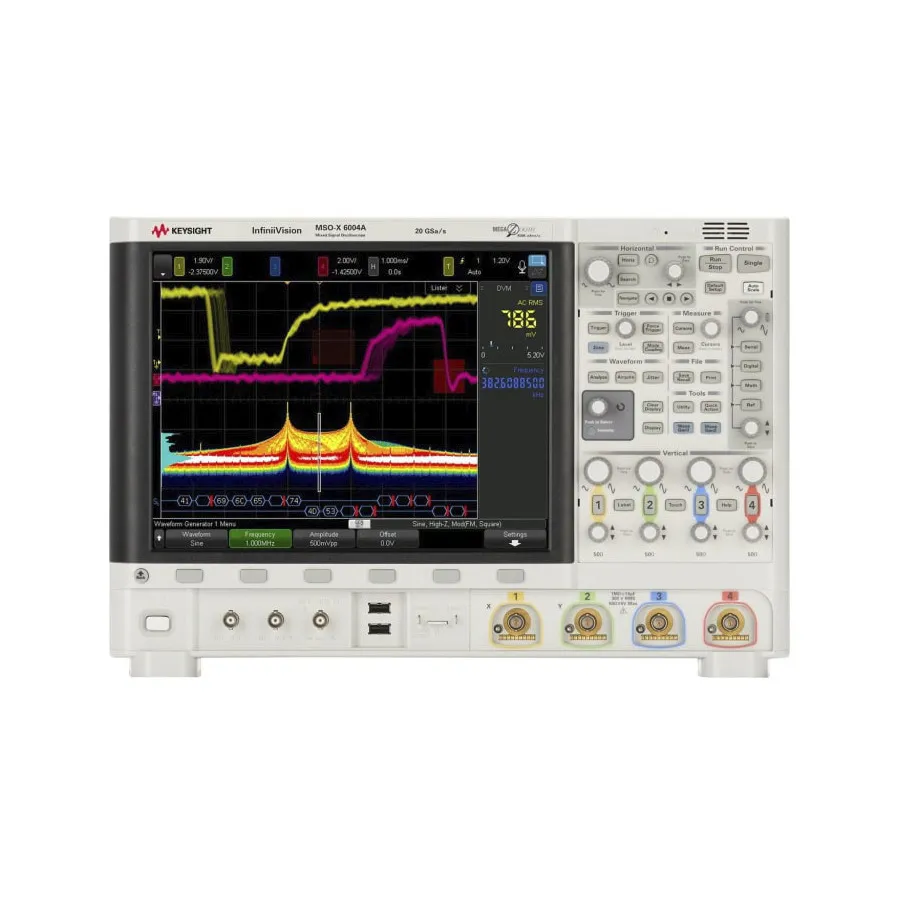

Keysight MSOX6004A 6000X Series Mixed-Signal Oscilloscope

Overview

The Keysight InfiniiVision 6000 X-Series mixed-signal oscilloscope combines high bandwidth capability with integrated digital channel measurement in a portable, user-friendly package. The MSOX6004A provides 1 GHz base bandwidth with options to upgrade to 2.5, 4, or 6 GHz, accommodating a wide range of measurement requirements from basic circuit debugging to advanced signal integrity analysis.

Key Features

• Bandwidth options from 1 GHz up to 6 GHz (upgradable)
• 20 GSa/s sampling rate with up to 4 Mpts memory depth
• 4 analog channels plus 16 integrated digital channels for time-correlated measurements
• Industry-leading 450,000 waveforms/second update rate
• 12.1-inch capacitive multi-touch display with InfiniiScan Zone touch trigger
• Standard histogram and color-grade FFT analysis; optional jitter and eye diagram analysis
• Integrated function/arbitrary waveform generator, digital voltmeter, counter, and protocol triggers (options)
• Voice control in 14 languages
• Three-year warranty

Digital Channel Integration

• 16 dedicated digital channels with time-correlated triggering and viewing
• Separate digital probe cable (N2756A) for clean integration
• Zone triggering for automatic trigger setup on signals of interest
• Segmented memory mode for ultra-deep event capture

Applications

• High-speed embedded system debugging and signal measurement
• Digital signal integrity analysis and jitter measurement
• Serial protocol trigger and decode (with options)
• General-purpose bench measurements and circuit troubleshooting

Included Accessories

• N2894A 700-MHz 10:1 passive probe (one per analog channel)
• N2756A 16-digital-channel MSO cable
• Certificate of calibration (2-year interval)
• Front panel protective cover
• Documentation (user's guide, service guide, programmer's manual)
