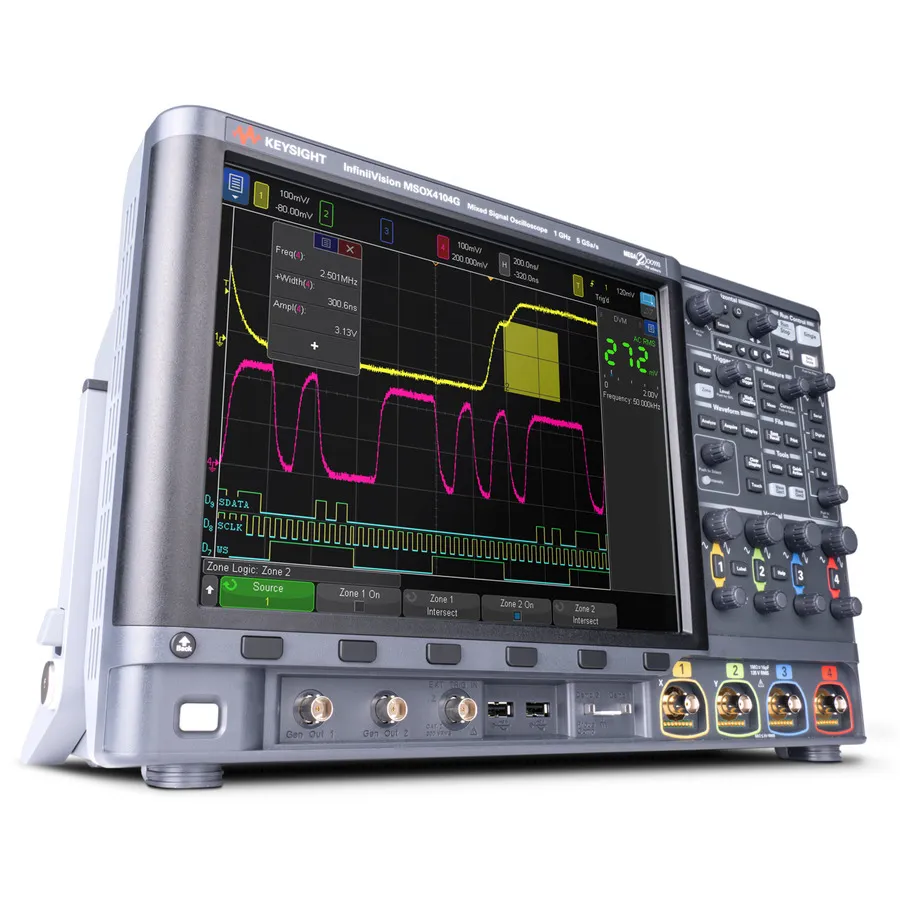

Keysight MSOX4154G Mixed Signal Oscilloscope

Overview

The Keysight InfiniiVision 4000G X-Series MSOX4154G is a 1.5 GHz mixed-signal oscilloscope with integrated serial protocol trigger and decode capabilities. Designed for engineers who need to debug complex digital systems, the MSOX4154G combines 4 analog and 16 digital channels, a large capacitive touch screen, and advanced software features including built-in help, waveform generator, mask testing, and frequency response analysis.

With the industry's 1,000,000 waveforms per second update rate and segmented memory technology, the MSOX4154G captures elusive glitches and provides deep signal visibility. The intuitive touch interface and zone trigger technology enable quick signal isolation and analysis, while serial protocol analysis supports I2C, SPI, RS232/422/485, UART, I2S, USB PD, and optional automotive and industrial protocols.

Key Features

• 1.5 GHz bandwidth with dual analog/digital triggering
• 4 analog channels plus 16 digital channels for comprehensive system analysis
• 5 GSa/s maximum sample rate with 4 Mpts memory depth
• 1,000,000 waveforms/sec update rate to capture rare signal events
• 12.1-inch capacitive touch screen with intuitive interface and zone triggering
• Standard serial protocol analysis: I2C, SPI, RS232/422/485, UART, I2S, USB PD
• Built-in dual WaveGen, mask limit testing, and frequency response analysis (Bode plots)
• Fully upgradable hardware and software options for advanced measurements
• 7 instruments integrated in one: Oscilloscope, 16-channel logic analyzer, waveform generator, DVM, counter, protocol analyzer, and spectrum analyzer

Applications

• Mixed-signal system debugging from general digital design to embedded systems
• Serial protocol trigger and decode for communication bus analysis
• Power supply and control loop response measurement
• High-speed digital circuit development and verification
• Embedded system design with sophisticated digital control circuitry

Included Accessories

• N2894A 700 MHz passive probe (10:1 attenuation) - one per analog channel
• N2756A 16-digital-channel MSO cable
• Localized power cord for your region
• Front panel protective cover
• Certificate of Calibration with 2-year calibration interval
• User guide, service guide, and programmer's manual on CD (localized)
