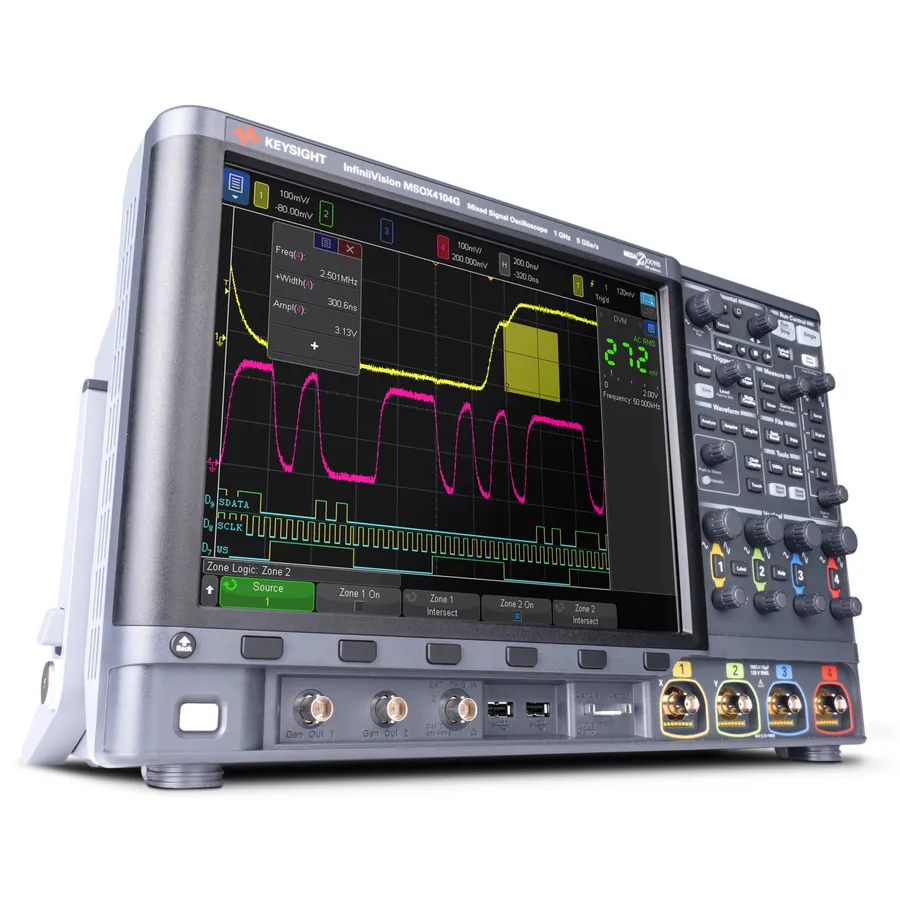

Keysight MSOX4104G Mixed Signal Oscilloscope

Overview

The Keysight InfiniiVision MSOX4104G is a 4-analog/16-digital channel mixed signal oscilloscope designed for engineers requiring advanced signal analysis and protocol decoding. With 1 GHz bandwidth, 5 GSa/s sample rate, and 1 million waveforms per second update rate, it delivers the performance needed for power analysis, automotive development, and semiconductor testing applications.

Key Features

• 4 analog + 16 digital channels
• 1 GHz bandwidth
• 5 GSa/s maximum sample rate
• 4 Mpts maximum memory depth
• 12.1-inch capacitive touch display
• 1,000,000 waveforms per second update rate
• 7 integrated instruments in one device
• Standard serial protocol analysis: I2C, SPI, RS232/422/485, UART, I2S, USB PD
• Optional protocol support: ARINC 429, CAN, CAN-dbc, CANFD, LIN, SENT, FlexRay, MIL-STD-1553, USB 2.0, CXPI, Manchester/NRZ
• Dual WaveGen, mask testing, FFT, histograms, and advanced waveform math
• Frequency response analysis and power analysis suite
• Zone trigger and segmented memory

Applications

• High-speed signal debugging and design verification
• Power supply and control loop analysis
• Automotive system development and debugging
• Semiconductor device characterization and testing
• Serial communication protocol troubleshooting

Included Accessories

• N2894A 700 MHz passive probe (10:1 attenuation) per analog channel
• N2756A 16-digital-channel MSO cable
• Localized power cord and front panel cover
