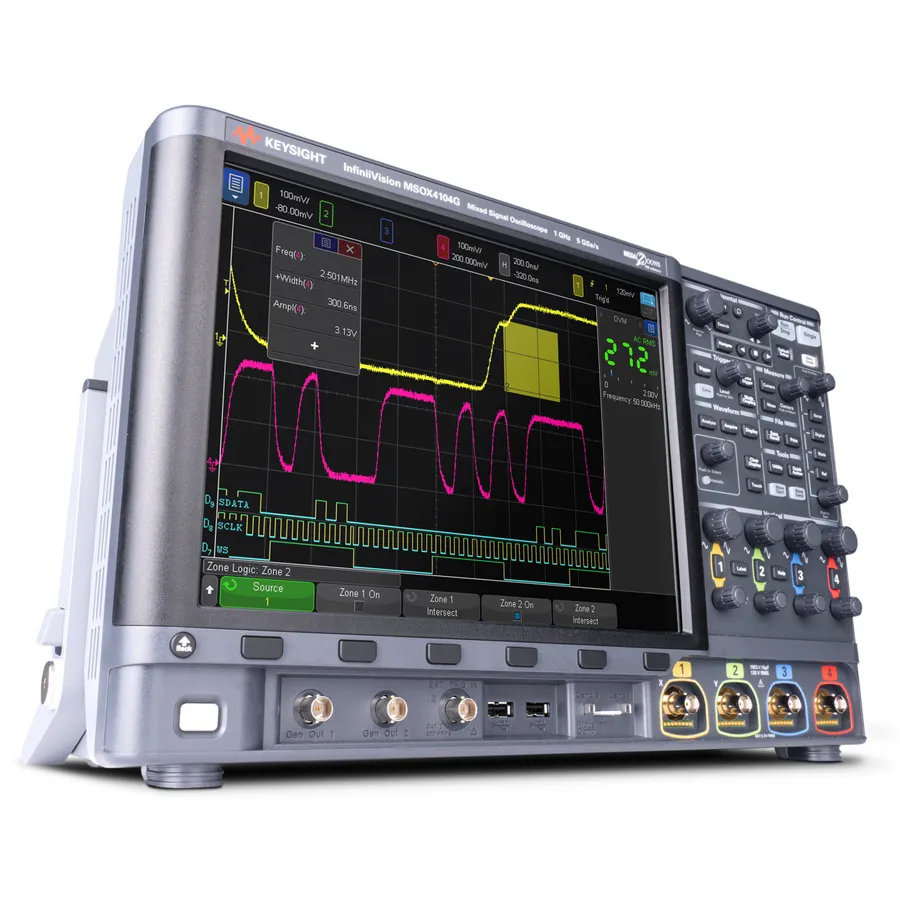

Keysight MSOX4022G Mixed Signal Oscilloscope

Overview

The Keysight MSOX4022G is a mixed signal oscilloscope in the InfiniiVision 4000G X-Series with 2 analog and 16 digital channels. It delivers powerful debugging capabilities with a 12.1-inch capacitive touchscreen, 1-million-waveforms-per-second update rate, and integrated serial protocol analysis for comprehensive signal monitoring and troubleshooting.

Key Features

• Channels: 2 Analog / 16 Digital with 5-digit hardware frequency counter
• Bandwidth: 200 MHz with 5 GSa/s maximum sample rate and 4 Mpts memory
• 1,000,000 waveforms per second update rate for capturing transient events
• 12.1-inch capacitive touch display with InfiniiScan Zone touch trigger
• Standard serial protocol analysis: I2C, SPI, RS232/422/485, UART, I2S, USB PD
• 7 integrated instruments: oscilloscope, function generator, counter, spectrum analyzer, and more
• Advanced triggering: zone trigger, segmented memory, mask testing
• Built-in waveform generator, FFT, histograms, and frequency response analysis (Bode plots)
• Standard connectivity: USB 2.0, LAN, video out (GPIB optional)
• License upgradeable for additional protocols and features

Applications

• General design debugging and signal analysis
• Power analysis and power supply characterization
• Automotive systems testing and development
• Semiconductor device debugging
• Serial protocol decoding and analysis

Included Accessories

• N2894A 700 MHz passive probes (one per analog channel, 10:1 attenuation)
• N2756A 16-digital-channel MSO cable
• Localized power cord and front panel cover
• Downloadable soft copy calibration
