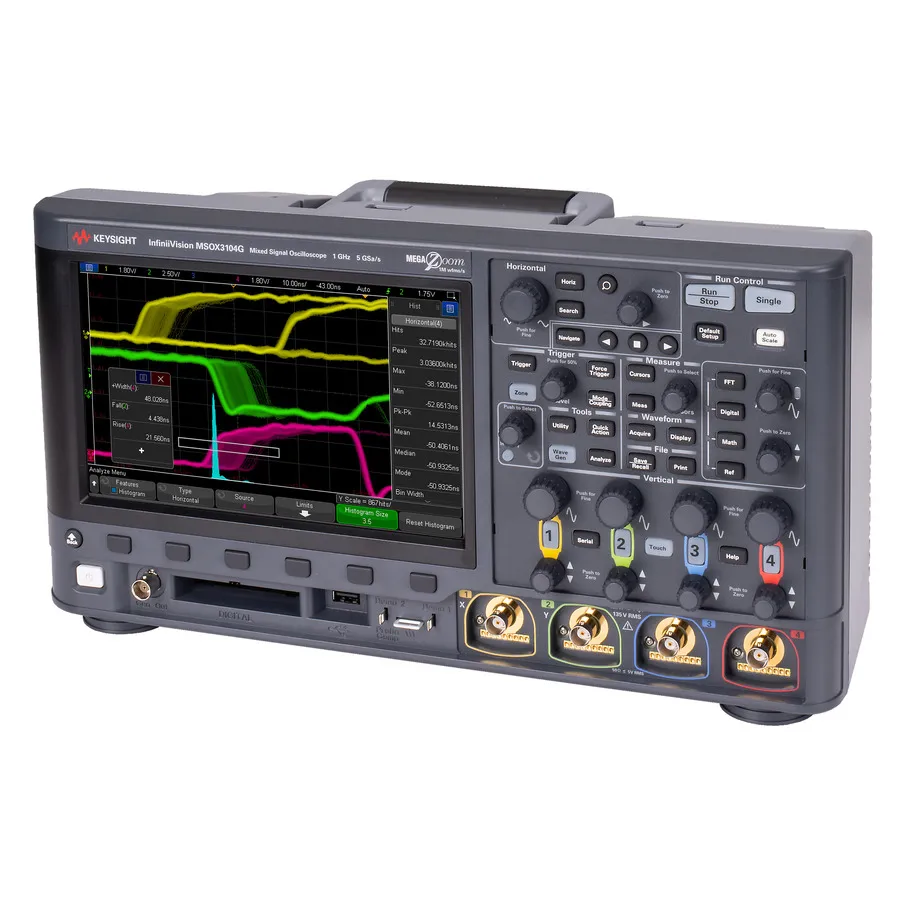

Keysight MSOX3104G Mixed Signal Oscilloscope

Overview

The Keysight MSOX3104G is a 1 GHz mixed-signal oscilloscope from the InfiniiVision 3000G X-Series, offering high-end performance in a compact form factor. Featuring an intuitive capacitive touch user interface, industry-leading waveform update rate, and zone trigger capability, it enables capture and isolation of elusive glitches and anomalies.

Key Features

• 1 GHz bandwidth with 4 analog channels and 16 digital channels
• 5 GSa/s maximum sample rate with up to 4 Mpts memory depth
• One million waveforms per second update rate
• 8.5" capacitive touch display with zone touch trigger
• Built-in 20 MHz function/arbitrary waveform generator
• I2C, SPI, UART, I2S, and USB PD trigger and decode
• Mask limit and measurement limit testing
• Waveform and measurement histograms
• Frequency response analysis (Bode plots)
• Enhanced HDTV video analysis
• USB host, USB device, LAN, and VGA connectivity

Applications

• Digital and mixed-signal circuit debugging
• Serial protocol analysis and validation
• Embedded systems development and testing
• Aerospace and defense applications (with optional software)
• Automotive testing (with optional software)
• Power supply characterization (with optional software)

Included Accessories

• Passive probes N2843A, 500 MHz, 10:1 attenuation, 1 Megohm, 11 pF (1 per channel)
• Certificate of calibration
• Localized power cord
