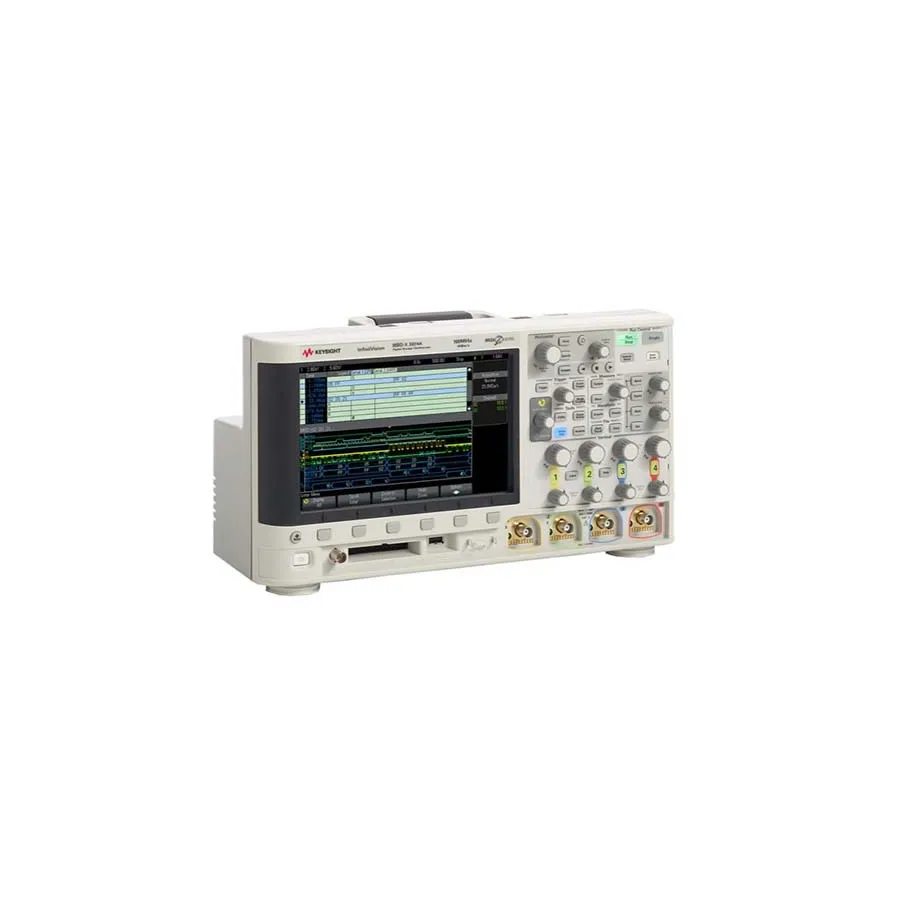

Keysight MSOX3104A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3104A is a 1 GHz mixed-signal oscilloscope with 4 analog and 16 digital channels, 5 GSa/s sampling, and 1 million waveforms/s update rate.
Product details
| Model | MSOX3104A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3104A is a 1 GHz mixed-signal oscilloscope that combines oscilloscope, digital channels, function/arbitrary waveform generator, digital voltmeter, and protocol analyzer in a single 5-instruments-in-1 platform. Part of the InfiniiVision 3000 X-Series, it delivers the industry-leading one million waveforms per second update rate for capturing the most signal detail.
Key Features
- 1 GHz bandwidth with 4 analog channels and 16 digital channels
- 4 GSa/s sampling rate with 2 Mpts standard memory (4 Mpts optional)
- One million waveforms per second update rate for excellent signal visibility
- Built-in 20 MHz function/arbitrary waveform generator with optional modulation
- 8.5" WVGA color display
- Serial protocol triggering and analysis
- Waveform math and FFT
- Search and navigate functionality
- MegaZoom IV smart memory technology
- USB, LAN, and optional VGA and GPIB connectivity
Applications
- Digital and mixed-signal circuit design and debugging
- Protocol analysis and serial communication testing
- Signal measurement and frequency analysis
- Embedded systems development
Specifications
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 5 GS/s |
| Memory | 2 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 3000 X-Series |
