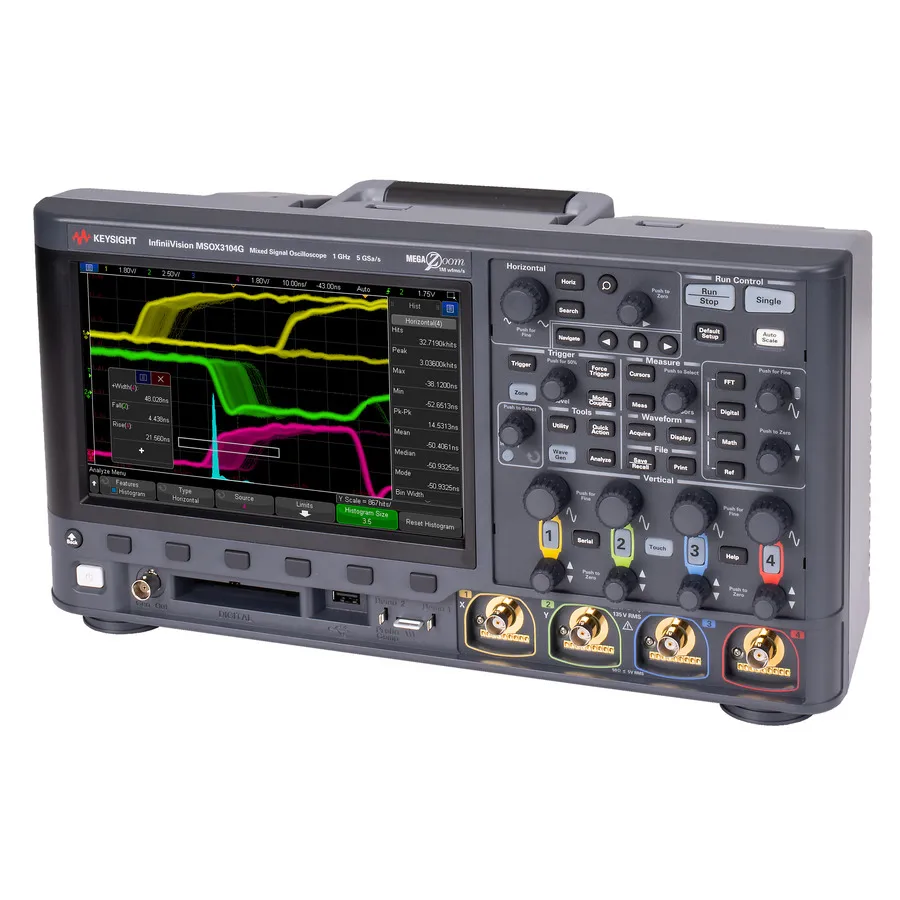

Keysight MSOX3054G Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3054G is a 4/16-channel mixed signal oscilloscope with 500MHz bandwidth, 5GS/s sample rate, touchscreen interface, and built-in waveform generator.
Product details
| Model | MSOX3054G |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3054G InfiniiVision 3000G X-Series is an advanced mixed signal oscilloscope offering 4 analog plus 16 digital channels in a compact design. With an intuitive touch interface, industry-leading waveform update rate, and comprehensive measurement capabilities, it enables engineers to capture, analyze, and solve complex signal challenges.
Key Features
- 500MHz bandwidth with up to 5 GSA/s maximum sample rate
- 4 analog channels + 16 digital channels
- Up to 4M points memory depth
- 8.5-inch capacitive touch display
- Industry-leading 1,000,000 waveform/second update rate
- Zone touch trigger technology
- Built-in 20 MHz function/arbitrary waveform generator
- Hardware-based serial protocol decoding for I2C, SPI, UART, I2S, and USB PD
- Waveform and measurement histograms
- Frequency response analysis with Bode plots
- Mask limit and measurement limit testing
- 8-digit counter and totalizer
Connectivity & Integration
- USB host and device ports
- LAN and VGA connectivity
- Optional GPIB interface
- 3-digit integrated DVM
- Export to Excel, Word, and MATLAB
- Mobile device remote control
- BenchVue software integration
Applications
- Aerospace and defense signal analysis
- Automotive circuit diagnostics and validation
- Power supply characterization
- USB 2.0 and mixed-protocol analysis
- Digital and analog circuit debugging
Included Accessories
- Passive probes N2843A, 500 MHz, 10:1 attenuation (1 per analog channel)
- Certificate of calibration
- Localized power cord
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 5 GS/s |
| Memory | 4 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 Capacitive Touch |
| Series | 3000G X-Series |
| Special Features | Function/Arbitrary Waveform Generator |
