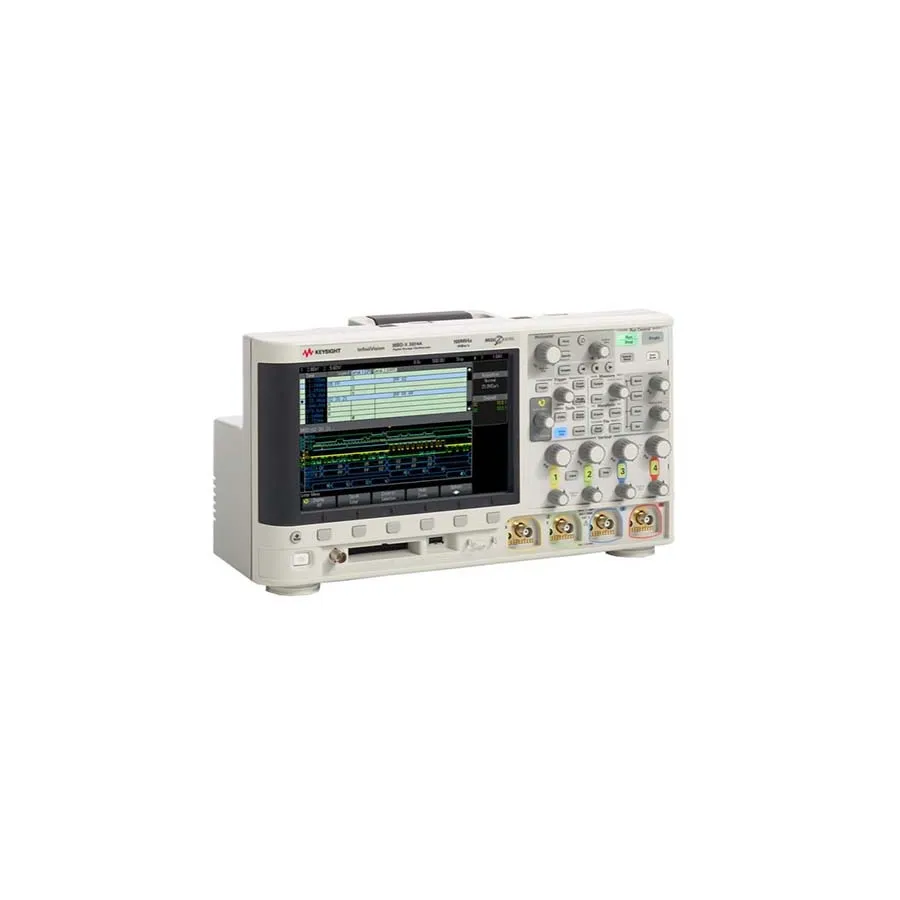

Keysight MSOX3054A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3054A is a 4/16-channel mixed signal oscilloscope with 500MHz bandwidth, 4GS/s sample rate, and 2Mpts memory for comprehensive circuit debugging.
Product details
| Model | MSOX3054A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3054A InfiniiVision 3000 X-Series is a 4-channel mixed signal oscilloscope offering 16 optional digital channels for comprehensive signal analysis. Designed for professionals needing to debug complex circuits, it combines high-speed analog capture with flexible digital channel expansion and integrated measurement instruments.
Key Features
- 500MHz bandwidth with 4 GSA/s maximum sample rate
- 4 analog channels + 16 optional digital channels
- 2 Mpts standard memory depth, upgradable to 4 Mpts
- Industry-leading 1,000,000 waveform/second update rate
- 8.5-inch WVGA color display
- MegaZoom IV smart memory technology
- Serial protocol triggering and analysis options
- Waveform math and FFT capabilities
- 20 MHz function/arbitrary waveform generator (optional)
- Search and navigate functions
Measurement & Analysis
- 5-instruments-in-1 integration (oscilloscope, digital channels, function generator, DVM, frequency counter)
- Protocol decoding for I2C, SPI, UART, I2S, and USB
- Frequency response analysis
- Measurement histograms
Connectivity
- USB host and device ports
- Optional LAN and VGA interfaces
- Optional GPIB interface
- Data export to Excel, Word, and MATLAB
Applications
- Digital and analog circuit debugging
- Mixed-signal protocol analysis
- Serial bus monitoring and troubleshooting
- Power supply and signal integrity testing
- Design verification and validation
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 3000 X-Series |
