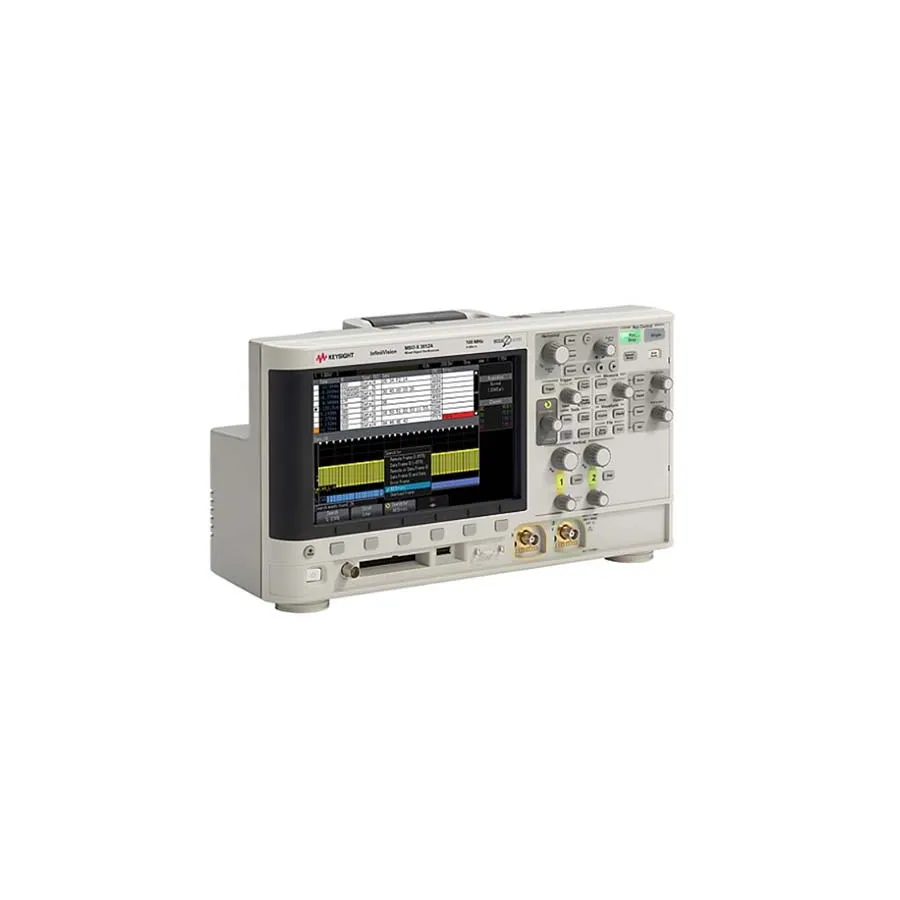

Keysight MSOX3052A Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3052A is a 500 MHz mixed signal oscilloscope with 2 analog and 16 digital channels, 4 GS/s sampling, 1 million waveforms/s update rate, and comprehensive 5-in-1 instrument integration.
Product details
| Model | MSOX3052A |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3052A is a 500 MHz mixed signal oscilloscope from the industry-proven InfiniiVision 3000 X-Series. It combines 2 analog channels and optional 16 digital channels with an industry-leading 1 million waveforms per second update rate, delivering superior signal visibility for complex measurement tasks. This oscilloscope integrates five measurement instruments in one platform, providing maximum measurement capability and investment protection through full upgradeability.
Key Features
- 500 MHz bandwidth with 4 GS/s sample rate
- 2 analog channels and 16 digital channels
- 2 Mpts standard memory (4 Mpts optional)
- Industry-leading 1 million waveforms per second update rate
- MegaZoom IV smart memory technology
- 5-instruments-in-1 integration (oscilloscope, logic analyzer, function/arbitrary waveform generator, digital voltmeter, protocol analyzer)
- 8.5 inch WVGA color display
- Serial protocol triggering and analysis options
- Waveform math and FFT analysis
- USB host and device connectivity with optional LAN, VGA, and GPIB interfaces
- Fully upgradeable architecture including bandwidth upgrade option to 1 GHz
Applications
- High-speed digital circuit design and debugging
- Mixed-signal embedded system verification
- Serial bus protocol analysis and decoding
- RF and microwave signal measurement
- Aerospace and defense applications
- General electronics testing and development
Specifications
| Bandwidth | 500 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sampling Rate | 4 GS/s |
| Memory | 2 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 WVGA |
| Series | 3000 X-Series |
