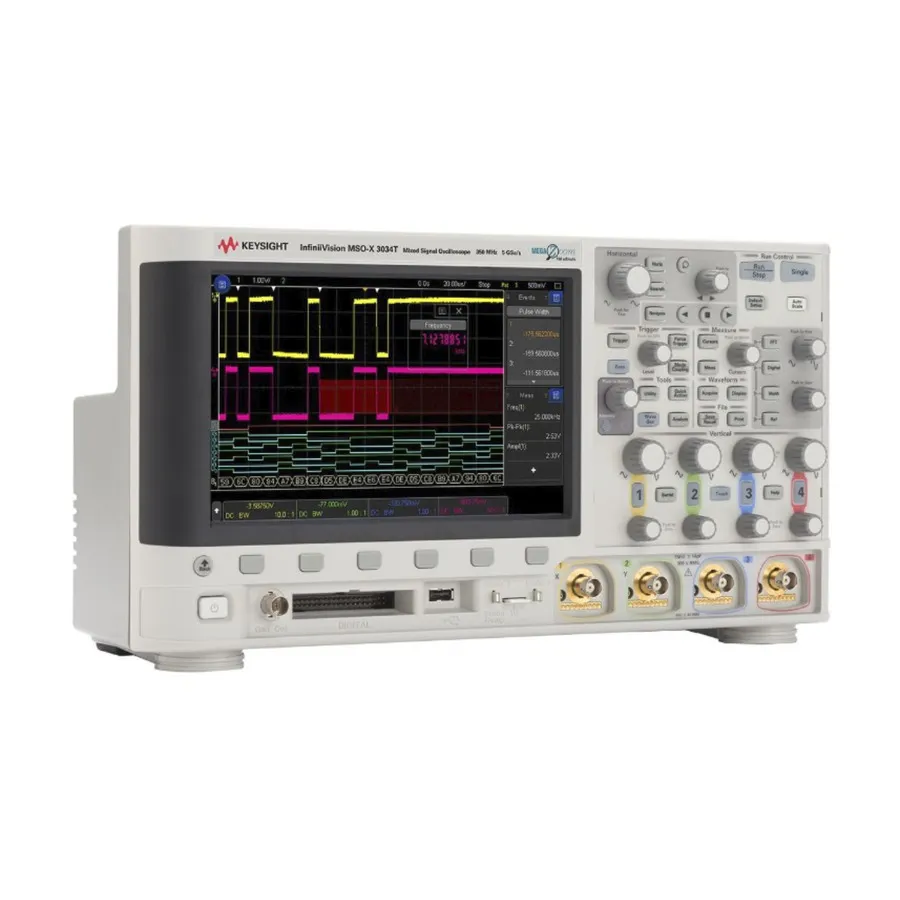

Keysight MSOX3034T Mixed Signal Oscilloscope
Request a quote
Keysight MSOX3034T is a 350 MHz mixed signal oscilloscope with 4 analog and 16 digital channels, 5 GS/s sampling, 4M memory, capacitive touch interface, and 1 million waveforms/s update rate.
Product details
| Model | MSOX3034T |
| Manufacturer | Keysight |
| Category | Digital Oscilloscopes |
| Availability | Made to order |
Description
Overview
The Keysight MSOX3034T is a 350 MHz mixed signal oscilloscope from the InfiniiVision 3000T X-Series, featuring a compact form factor and advanced capacitive touch user interface. With industry-leading waveform update rate and zone touch triggering, this oscilloscope enables engineers to capture and isolate difficult signal anomalies quickly and efficiently while simplifying complex measurement tasks.
Key Features
- 350 MHz bandwidth with 5 GS/s sample rate
- 4 analog channels and 16 digital channels
- 4 Mpts memory with segmented smart memory technology
- Industry-leading 1 million waveforms per second update rate
- 8.5 inch capacitive touch display
- Zone touch trigger for advanced triggering with simple gestures
- 7-in-1 instrument integration: oscilloscope, frequency response analyzer, logic analyzer, protocol analyzer, function/arbitrary waveform generator, digital voltmeter, and counter
- Hardware-based serial protocol analysis for faster decoding
- Waveform math and FFT analysis
- Full upgradeability for bandwidth, instrument integration, and software features
- BenchVue software standard for test automation and data collection
Applications
- Embedded systems debugging and design verification
- Mixed-signal circuit analysis and troubleshooting
- Serial bus protocol triggering and analysis
- Glitch and anomaly detection
- High-speed digital signal measurement
- General electronics development and testing
Specifications
| Bandwidth | 350 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sampling Rate | 5 GS/s |
| Memory | 4 Mpts |
| Type | MSO |
| Vertical Resolution | 8 bit |
| Display Type | 8.5 Capacitive Touch |
| Series | 3000T X-Series |
